Individual hose record
4637942 Hose Repair Specifications
Excavator · Hitachi · ZX850LC-3 · Attachments
Finished length450 mm
Locate this hose

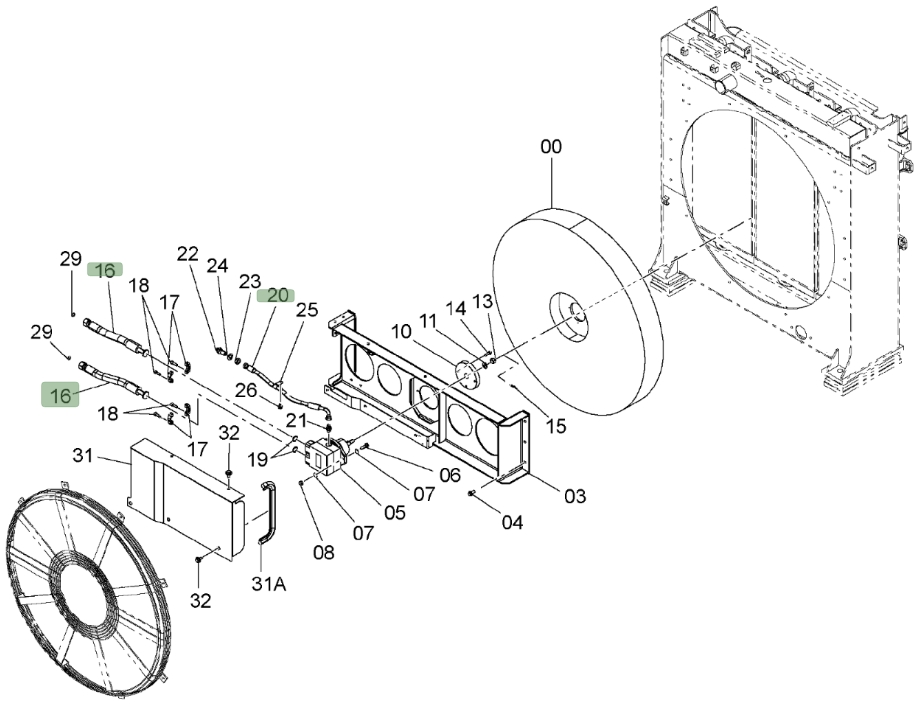

Installation diagram — Pipe No. 16
Locate Pipe No. 16 in the diagram, then confirm part number 4637942 before removing the hose.
Repair specifications
- Part number
- 4637942
- Diagram pipe number
- 16
- Installation route
- 风扇马达~过渡阀块(风扇马达)
- Hose specification
- DN19;2SN-12;21.5MPa
- Finished length
- 450 mm
- Working pressure
- 21.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- Light-series flangeOriginal Chinese: 法兰-轻型
- Quantity
- 2
