Individual hose record

4656027 Hose Repair Specifications

Excavator · Hitachi · ZX850LC-3 · Attachments

Finished length3,250 mm

Locate this hose

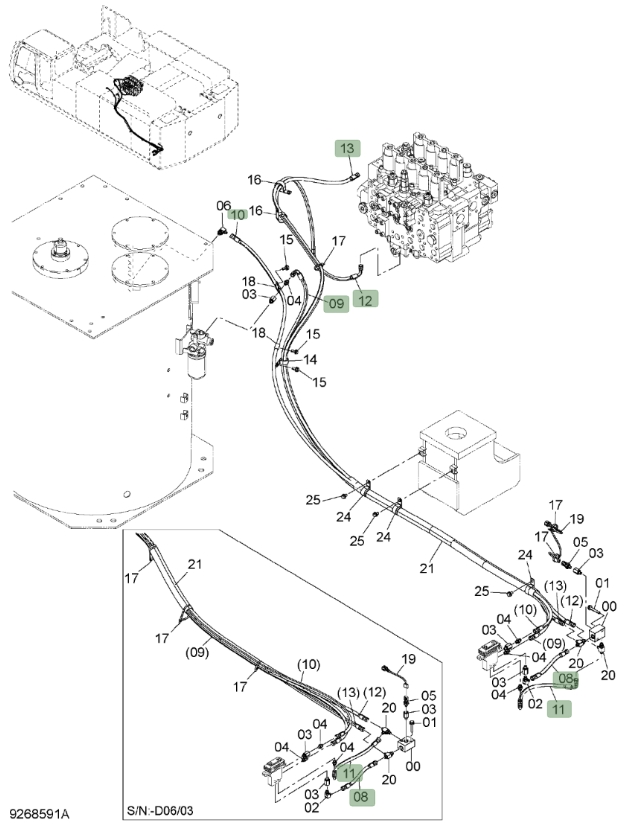

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number 4656027 before removing the hose.

Hitachi ZX850LC-3 installation diagram showing hydraulic hose 4656027 at Pipe No. 10 — Hitachi ZX850LC-3Part 4656027 · Pipe No. 10Open full-size diagram

Repair specifications

Part number: 4656027
Diagram pipe number: 10
Installation route: 配重自卸踏板~液压油箱
Hose specification: DN10;1SN-6;7Mpa
Finished length: 3,250 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 16

4640562

Installation route: 电磁阀(散热器)~风扇液压油泵

Length: 400 mm
Specification: DN19;4SP-12;38Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: Light-series flangeOriginal Chinese: 法兰-轻型

View full repair specifications

Diagram Pipe No. 8

4454734

Installation route: 配重自卸踏板~过渡阀块(配重自卸)

Length: 250 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 23

4313430

Installation route: 过渡阀块(散热器)~回油铁管(液压油箱)

Length: 1,150 mm
Specification: DN12;1SN-8;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 16

4637942

Installation route: 风扇马达~过渡阀块(风扇马达)

Length: 450 mm
Specification: DN19;2SN-12;21.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: Light-series flangeOriginal Chinese: 法兰-轻型

View full repair specifications

Diagram Pipe No. 24

4640837

Installation route: 电磁阀(散热器)~回油铁管(液压油箱)

Length: 520 mm
Specification: DN12;1SN-8;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 45°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 35

4652694

Installation route: 先导滤芯~过渡阀块(支架)

Length: 1,150 mm
Specification: DN12;1SN-8;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 26

4452734

Installation route: 电磁阀(散热器)~三通(散热器)

Length: 400 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications
