Individual hose record

4452263 Hose Repair Specifications

Excavator · Hitachi · ZX225USLC · Attachments – Breaker

Finished length1,800 mm

Locate this hose

Installation diagram — Pipe No. 3

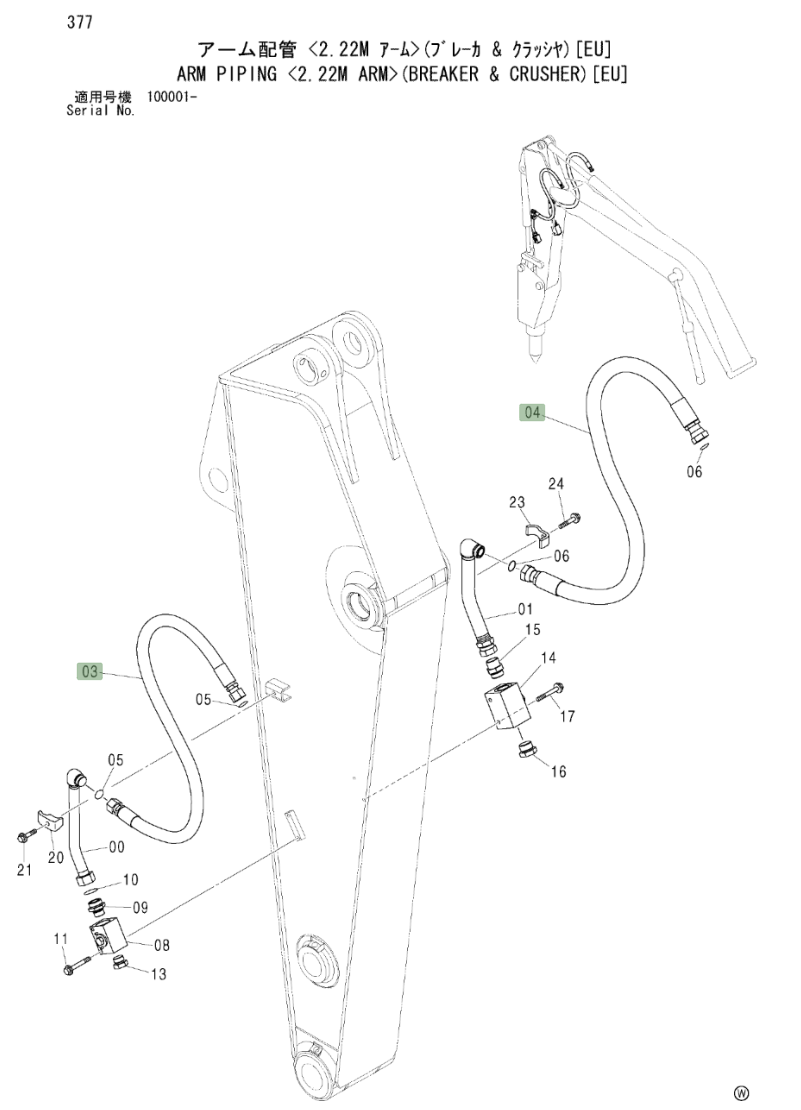

Locate Pipe No. 3 in the diagram, then confirm part number 4452263 before removing the hose.

Hitachi ZX225USLC installation diagram showing hydraulic hose 4452263 at Pipe No. 3 — **Hitachi ZX225USLC**Part 4452263 · Pipe No. 3Open full-size diagram

Repair specifications

Part number: 4452263
Diagram pipe number: 3
Installation route: 小臂破碎器截止阀左
Hose specification: DN25;4SH-16;34.5Mpa
Finished length: 1,800 mm
Working pressure: 34.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 15

4266284

Installation route: 电磁阀(破碎器)~过渡阀块(破碎器)

Length: 2,100 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 8

4402701

Installation route: 控制阀(破碎器)~过渡阀块(破碎器)

Length: 720 mm
Specification: DN6;1SN-4;7MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 25

4341692

Installation route: 分配阀后~液压油箱

Length: 860 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 27

4390647

Installation route: 大臂(破碎器)~控制阀(破碎器)

Length: 1,950 mm
Specification: DN10;2SN-6;34.5MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 45°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 28

4387816

Installation route: 大臂(破碎器)~控制阀(破碎器)

Length: 2,200 mm
Specification: DN10;2SN-6;34.5MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 45°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 3

4357695

Installation route: 大臂(前段)~大臂(后段)

Length: 1,480 mm
Specification: DN25;4SP-16;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 11

4366088

Installation route: 过渡阀块(破碎器)~分配阀左

Length: 910 mm
Specification: DN10;2SN-6;34.5MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 41

4272697

Installation route: 过渡阀块(破碎器)~铁管(破碎器)

Length: 900 mm
Specification: DN25;4SH-16;38.8MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications
