Individual hose record
4366088 Hose Repair Specifications
Excavator · Hitachi · ZX225USLC · Attachments – Breaker
Finished length910 mm
Locate this hose

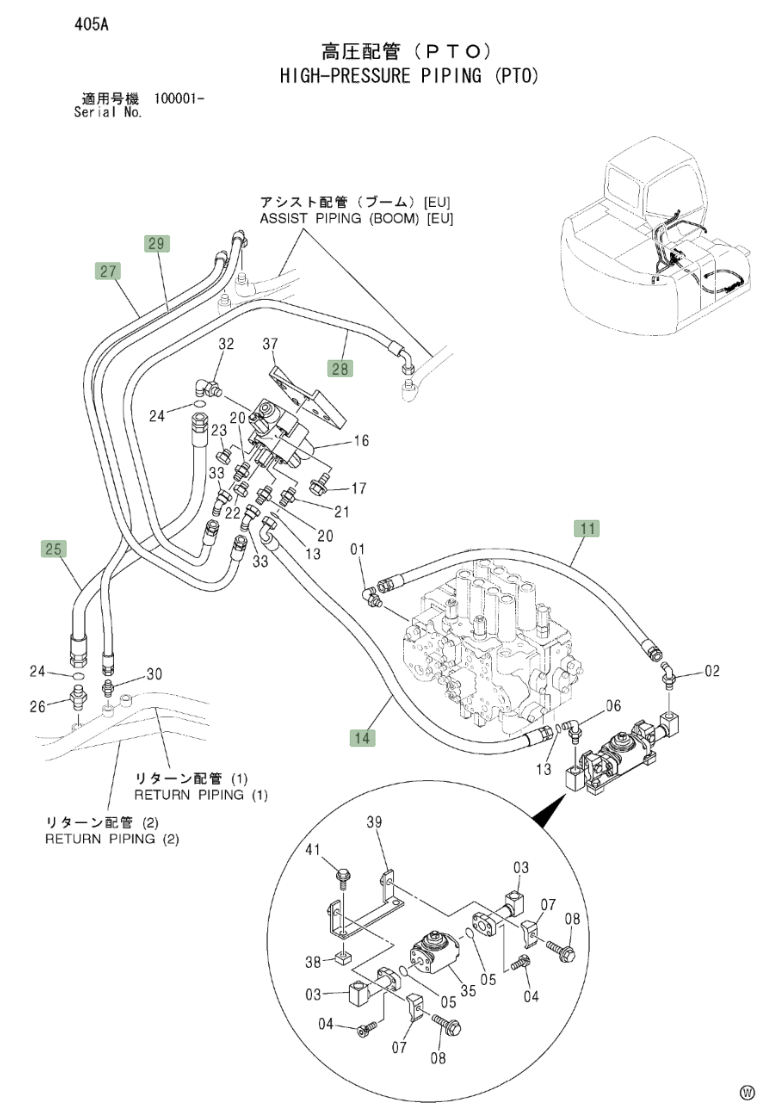

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number 4366088 before removing the hose.
Repair specifications
- Part number
- 4366088
- Diagram pipe number
- 11
- Installation route
- 过渡阀块(破碎器)~分配阀左
- Hose specification
- DN10;2SN-6;34.5MPa
- Finished length
- 910 mm
- Working pressure
- 34.5 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
