Individual hose record
4266284 Hose Repair Specifications
Excavator · Hitachi · ZX225USLC · Attachments – Breaker
Finished length2,100 mm
Locate this hose

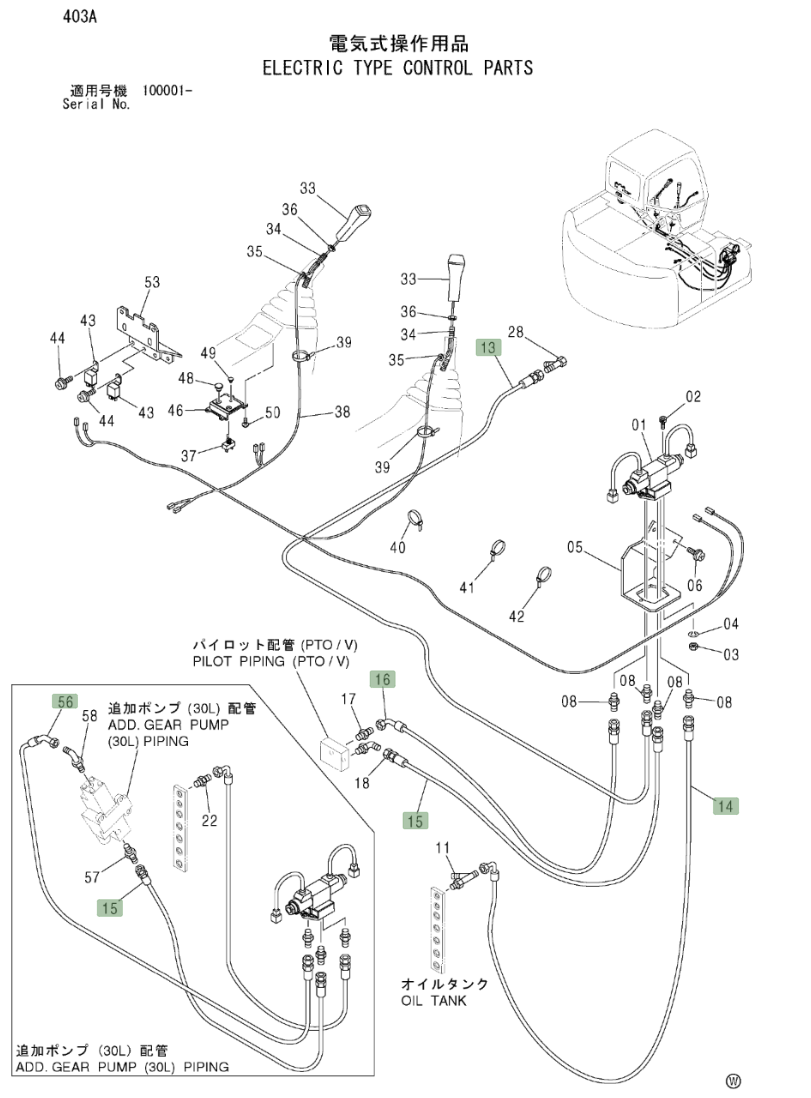

Installation diagram — Pipe No. 15
Locate Pipe No. 15 in the diagram, then confirm part number 4266284 before removing the hose.
Repair specifications
- Part number
- 4266284
- Diagram pipe number
- 15
- Installation route
- 电磁阀(破碎器)~过渡阀块(破碎器)
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 2,100 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
Same system
Related Hoses
- Length
- 720 mm
- Specification
- DN6;1SN-4;7MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Length
- 860 mm
- Specification
- DN6;1SN-4;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Length
- 1,950 mm
- Specification
- DN10;2SN-6;34.5MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 45°美制内螺纹37°内锥
- Length
- 2,200 mm
- Specification
- DN10;2SN-6;34.5MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 45°美制内螺纹37°内锥
- Length
- 1,480 mm
- Specification
- DN25;4SP-16;35Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 910 mm
- Specification
- DN10;2SN-6;34.5MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Length
- 900 mm
- Specification
- DN25;4SH-16;38.8MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
