Individual hose record

4284967 Hose Repair Specifications

Excavator · Hitachi · EX200LC-2 · Hydraulic Tank

Finished length2,650 mm

Locate this hose

Installation diagram — Pipe No. 15

Locate Pipe No. 15 in the diagram, then confirm part number 4284967 before removing the hose.

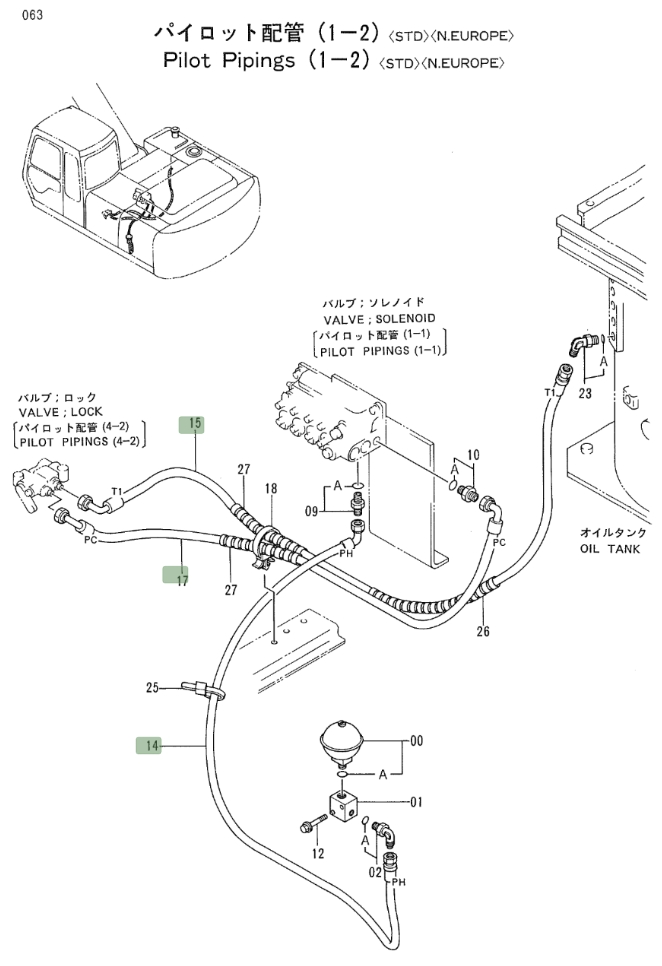

Hitachi EX200LC-2 installation diagram showing hydraulic hose 4284967 at Pipe No. 15 — Hitachi EX200LC-2Part 4284967 · Pipe No. 15Open full-size diagram

Repair specifications

Part number: 4284967
Diagram pipe number: 15
Installation route: 液压油箱~进回油阀
Hose specification: DN10;1层纤维-6;14MPa
Finished length: 2,650 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 15

4305376

Installation route: 液压油箱~进回油阀

Length: 2,730 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 45A

4304446

Installation route: 回油铁管(液压油箱)~中转接头(行走踏板)

Length: 1,550 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
