Individual hose record
4304446 Hose Repair Specifications
Excavator · Hitachi · EX200LC-2 · Hydraulic Tank
Finished length1,550 mm
Locate this hose

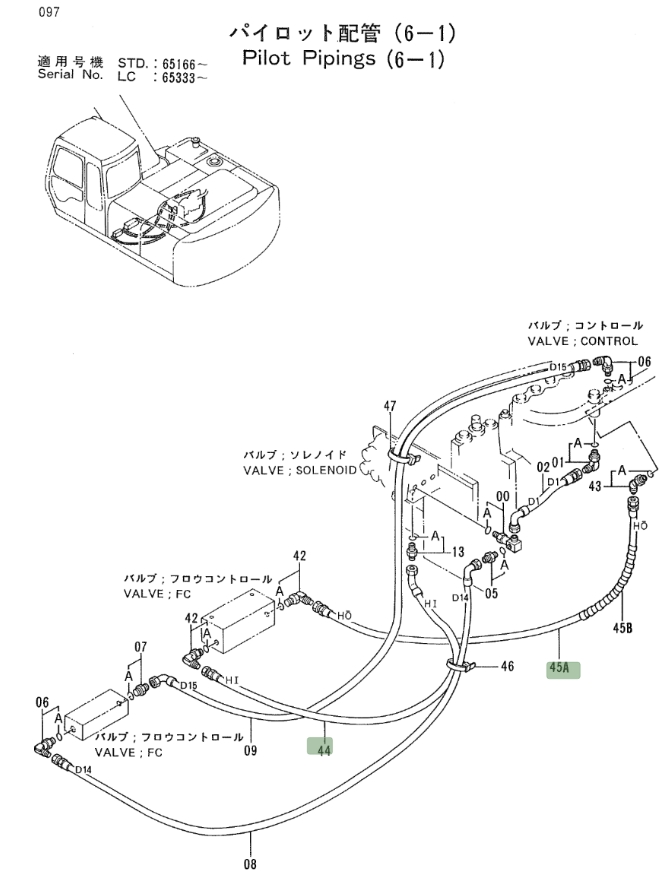

Installation diagram — Pipe No. 45A
Locate Pipe No. 45A in the diagram, then confirm part number 4304446 before removing the hose.
Repair specifications
- Part number
- 4304446
- Diagram pipe number
- 45A
- Installation route
- 回油铁管(液压油箱)~中转接头(行走踏板)
- Hose specification
- DN10;1层纤维-6;14MPa
- Finished length
- 1,550 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
