Individual hose record
4437634 Hose Repair Specifications
Excavator · Hitachi · ZX210W · Attachments – Breaker
Finished length2,950 mm
Locate this hose

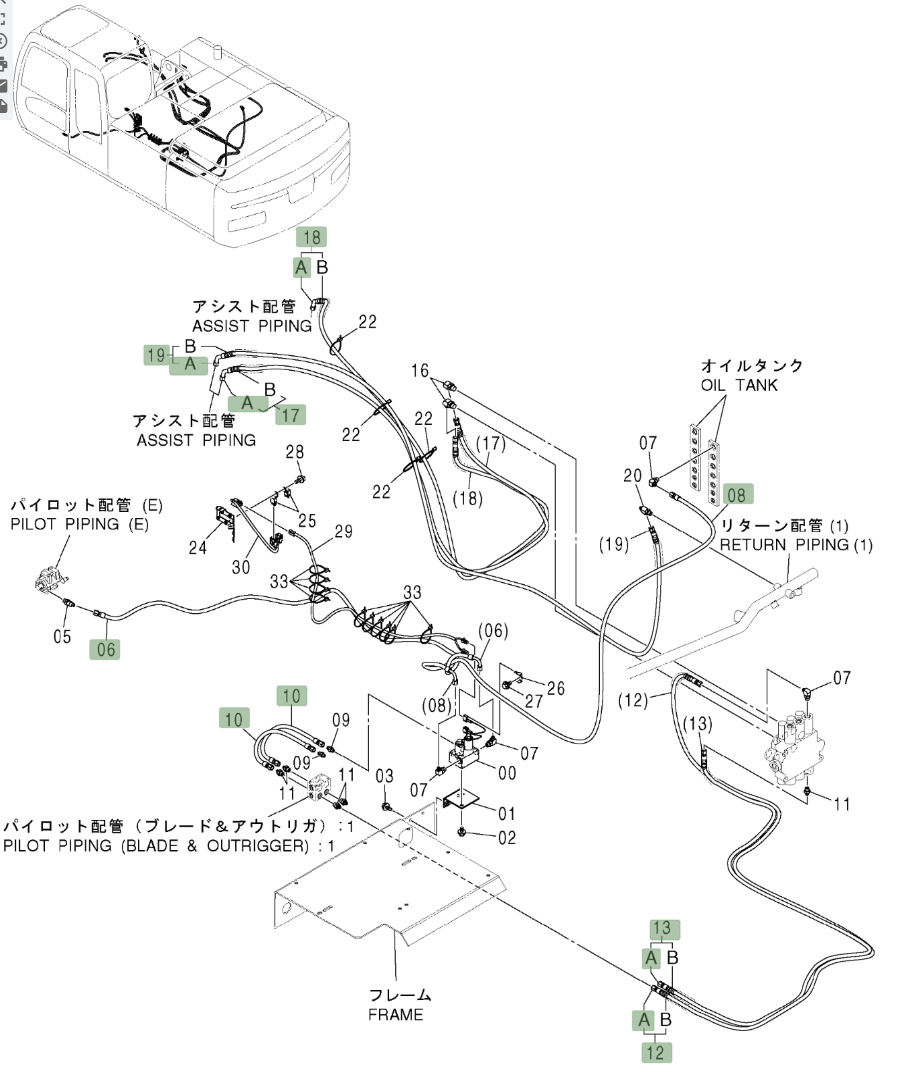

Installation diagram — Pipe No. 8
Locate Pipe No. 8 in the diagram, then confirm part number 4437634 before removing the hose.
Repair specifications
- Part number
- 4437634
- Diagram pipe number
- 8
- Installation route
- 液压油箱~电磁阀(破碎器)
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 2,950 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
