Individual hose record

4484097 Hose Repair Specifications

Excavator · Hitachi · ZX210W · Attachments – Breaker

Finished length3,100 mm

Locate this hose

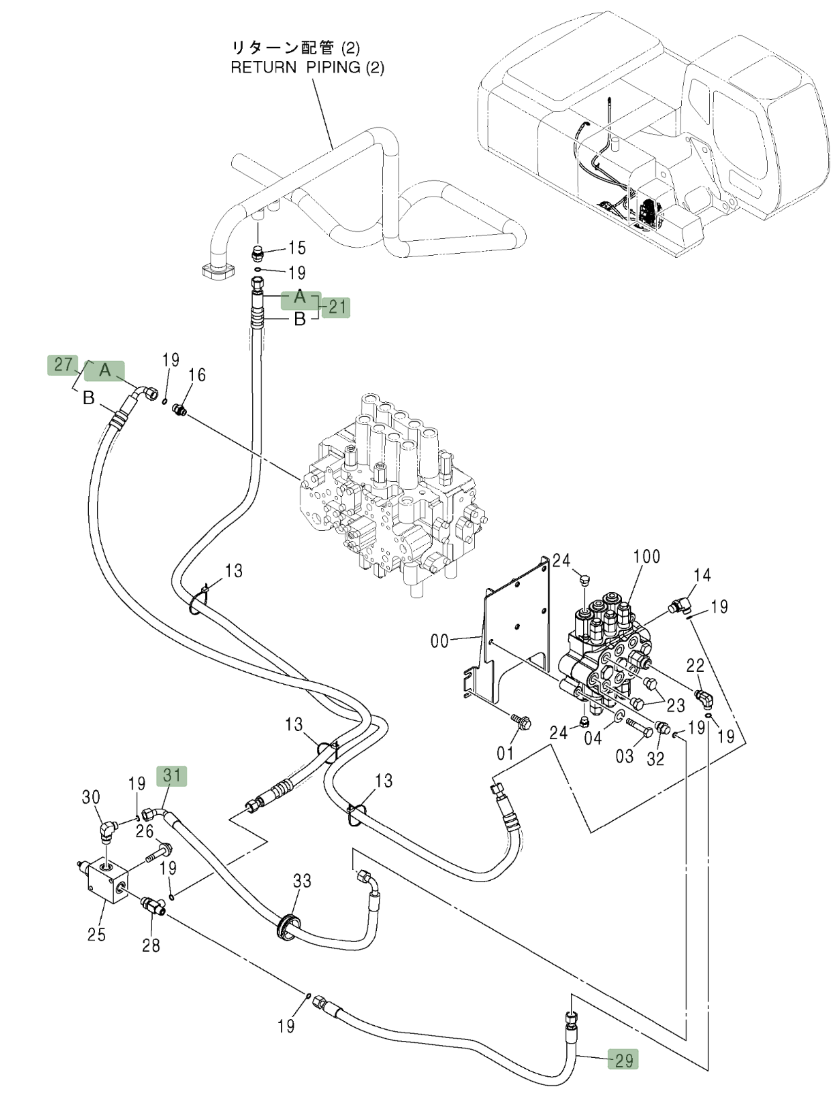

Installation diagram — Pipe No. 21A

Locate Pipe No. 21A in the diagram, then confirm part number 4484097 before removing the hose.

Part number: 4484097
Diagram pipe number: 21A
Installation route: 控制阀(破碎器)~回油铁管(分配阀)
Hose specification: DN12;1SN-8;7MPa
Finished length: 3,100 mm
Working pressure: 7 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 8

Installation route: 液压油箱~电磁阀(破碎器)

Diagram Pipe No. 6

Installation route: 过渡阀块(破碎器)~分配阀左

Length: 1,000 mm
Specification: DN25;4SP-16;34.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 3

Installation route: 大臂(前段)~大臂(后段)

Length: 1,480 mm
Specification: DN25;4SP-16;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
