KHJ2084 Hose Repair Specifications

Excavator · Case · CX75C SR · Attachments – Breaker

Finished length350 mm

Locate this hose

Installation diagram — Pipe No. B28-C15

Locate Pipe No. B28-C15 in the diagram, then confirm part number KHJ2084 before removing the hose.

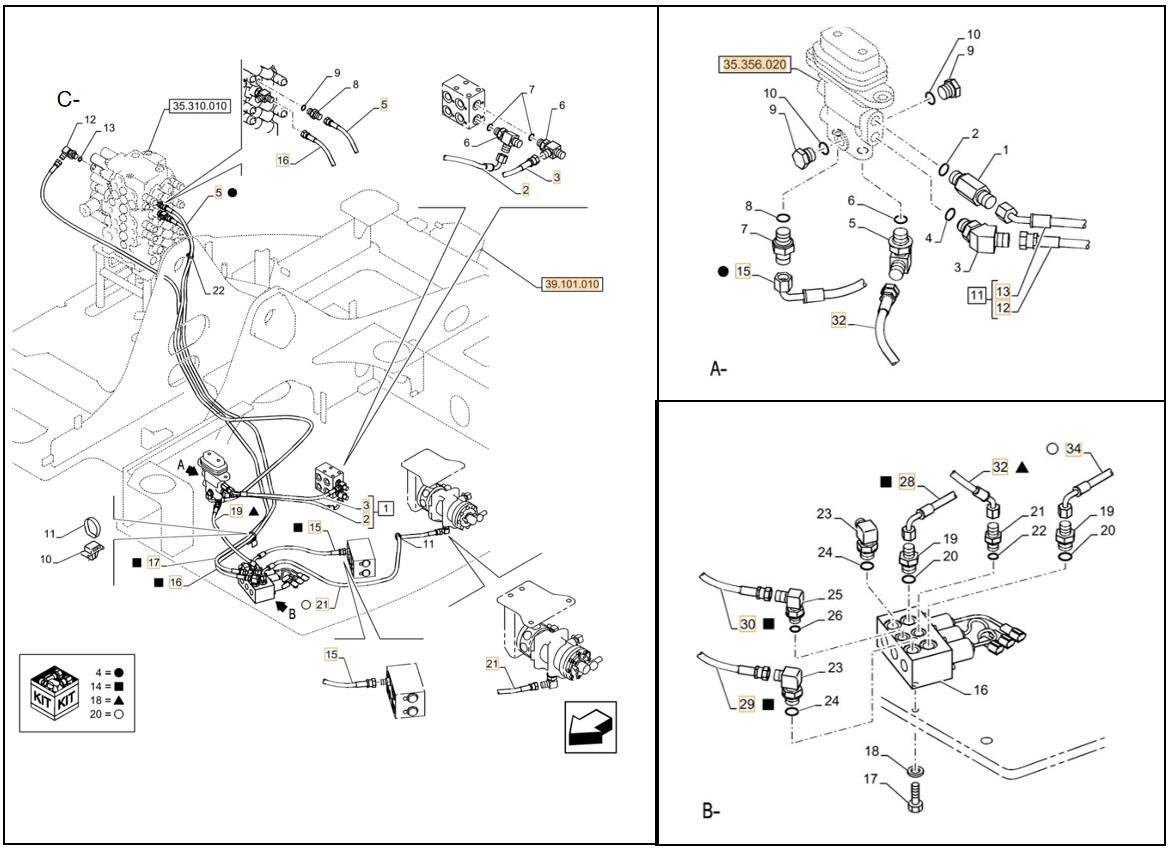

Case CX75C SR installation diagram showing hydraulic hose KHJ2084 at Pipe No. B28-C15 — **Case CX75C SR**Part KHJ2084 · Pipe No. B28-C15Open full-size diagram

Repair specifications

Part number: KHJ2084
Diagram pipe number: B28-C15
Installation route: 电磁阀(破碎器)~节流阀(破碎器踏板)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 350 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
