Individual hose record

KHJ2166 Hose Repair Specifications

Excavator · Case · CX75C SR · Attachments – Breaker

Finished length2,300 mm

Locate this hose

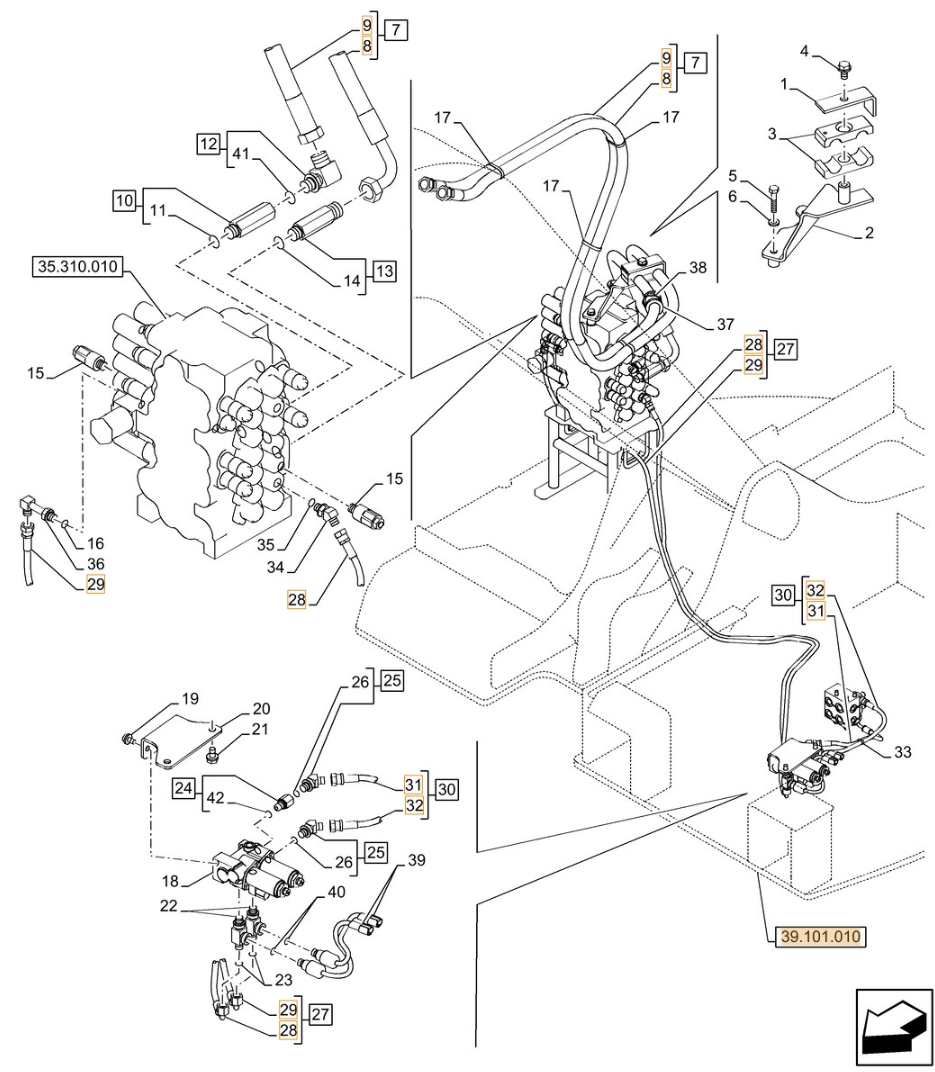

Installation diagram — Pipe No. 29

Locate Pipe No. 29 in the diagram, then confirm part number KHJ2166 before removing the hose.

Case CX75C SR installation diagram showing hydraulic hose KHJ2166 at Pipe No. 29 — **Case CX75C SR**Part KHJ2166 · Pipe No. 29Open full-size diagram

Repair specifications

Part number: KHJ2166
Diagram pipe number: 29
Installation route: 破碎器踏板~分配阀右
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,300 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
