Individual hose record

KHJ2524 Hose Repair Specifications

Excavator · Case · CX75C SR · Attachments – Breaker

Finished length1,950 mm

Locate this hose

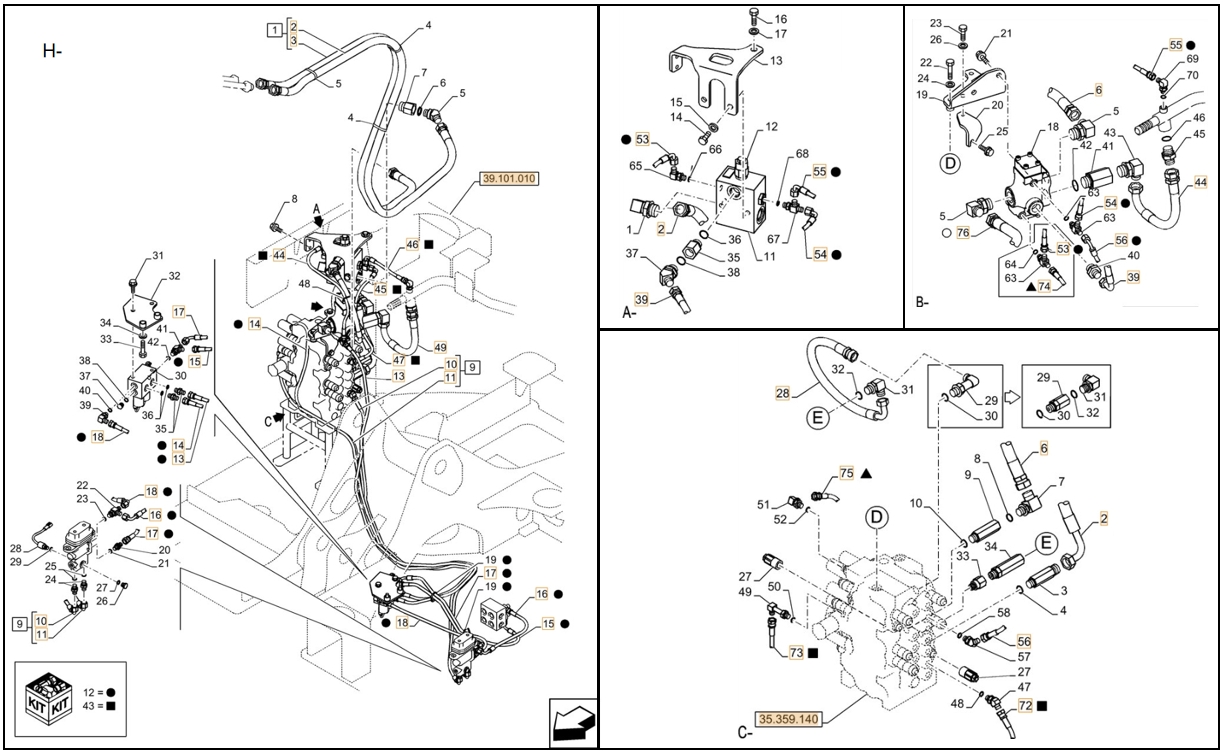

Installation diagram — Pipe No. C72-H10

Locate Pipe No. C72-H10 in the diagram, then confirm part number KHJ2524 before removing the hose.

Case CX75C SR installation diagram showing hydraulic hose KHJ2524 at Pipe No. C72-H10 — **Case CX75C SR · KHJ2524**Part KHJ2524 · Pipe No. C72-H10Open full-size diagram

Repair specifications

Part number: KHJ2524
Diagram pipe number: C72-H10
Installation route: 破碎器踏板~分配阀左
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,950 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
