Individual hose record
4334310 Hose Repair Specifications
Excavator · Hitachi · ZX160LC · Attachments
Finished length450 mm
Locate this hose

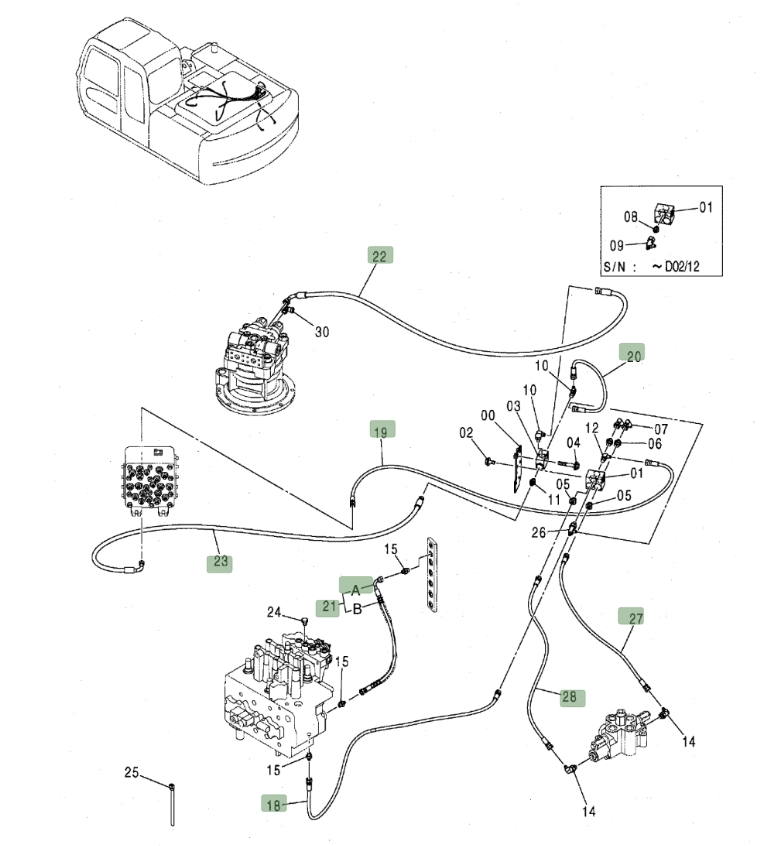

Installation diagram — Pipe No. 20
Locate Pipe No. 20 in the diagram, then confirm part number 4334310 before removing the hose.
Repair specifications
- Part number
- 4334310
- Diagram pipe number
- 20
- Installation route
- 过渡阀块(分节大臂)~过渡阀块(隔板)
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 450 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
