Individual hose record
4452251 Hose Repair Specifications
Excavator · Hitachi · ZX160LC · Attachments
Finished length3,350 mm
Locate this hose

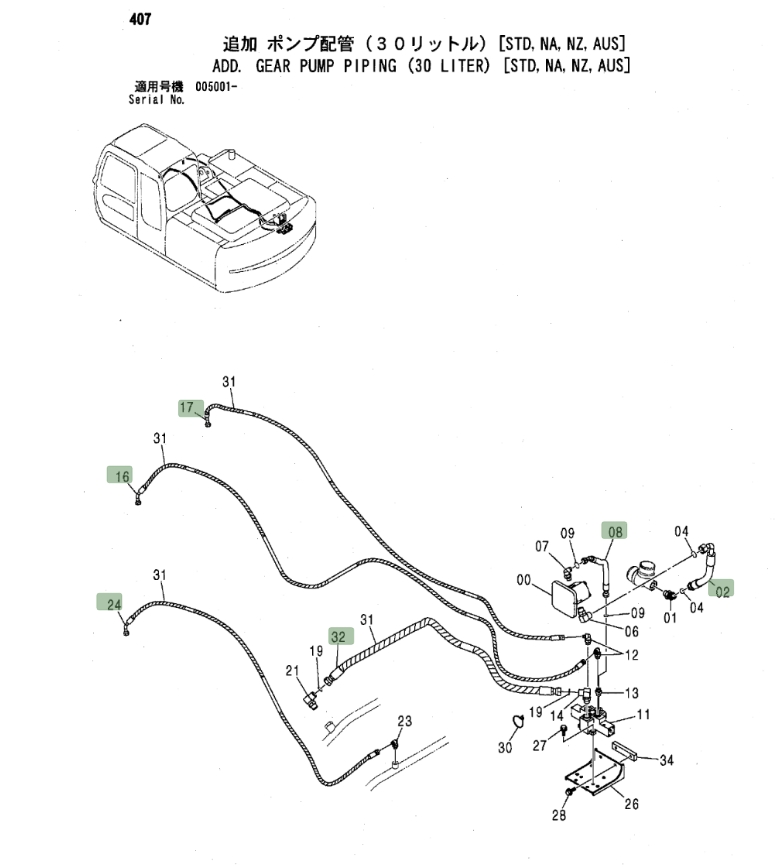

Installation diagram — Pipe No. 16
Locate Pipe No. 16 in the diagram, then confirm part number 4452251 before removing the hose.
Repair specifications
- Part number
- 4452251
- Diagram pipe number
- 16
- Installation route
- 大臂(辅助)~控制阀(辅助)
- Hose specification
- DN10;2SN-6;34.5MPa
- Finished length
- 3,350 mm
- Working pressure
- 34.5 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 45°美制内螺纹37°内锥
- Quantity
- 1
