Individual hose record
9238423 Hose Repair Specifications
Excavator · Hitachi · ZX160LC · Attachments
Finished length1,900 mm
Locate this hose

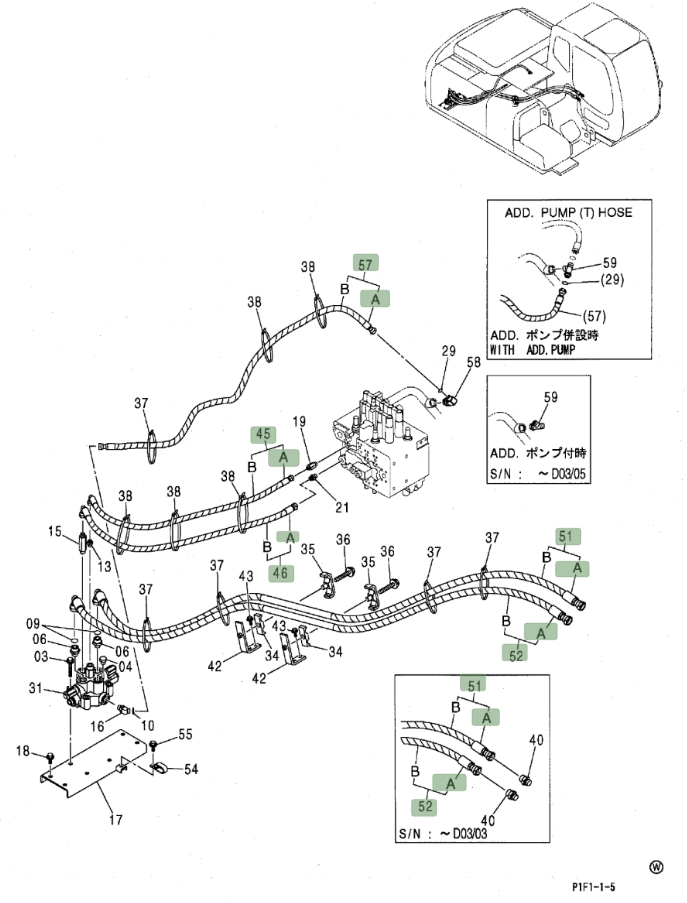

Installation diagram — Pipe No. 57
Locate Pipe No. 57 in the diagram, then confirm part number 9238423 before removing the hose.
Repair specifications
- Part number
- 9238423
- Diagram pipe number
- 57
- Installation route
- 控制阀(分节大臂)~回油铁管(分配阀)
- Hose specification
- DN12;1SN-8;7MPa
- Finished length
- 1,900 mm
- Working pressure
- 7 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
