Individual hose record

DS2093070 Hose Repair Specifications

Excavator · Doosan · DX60R · Attachments – Quick Coupler

Finished length300 mm

Locate this hose

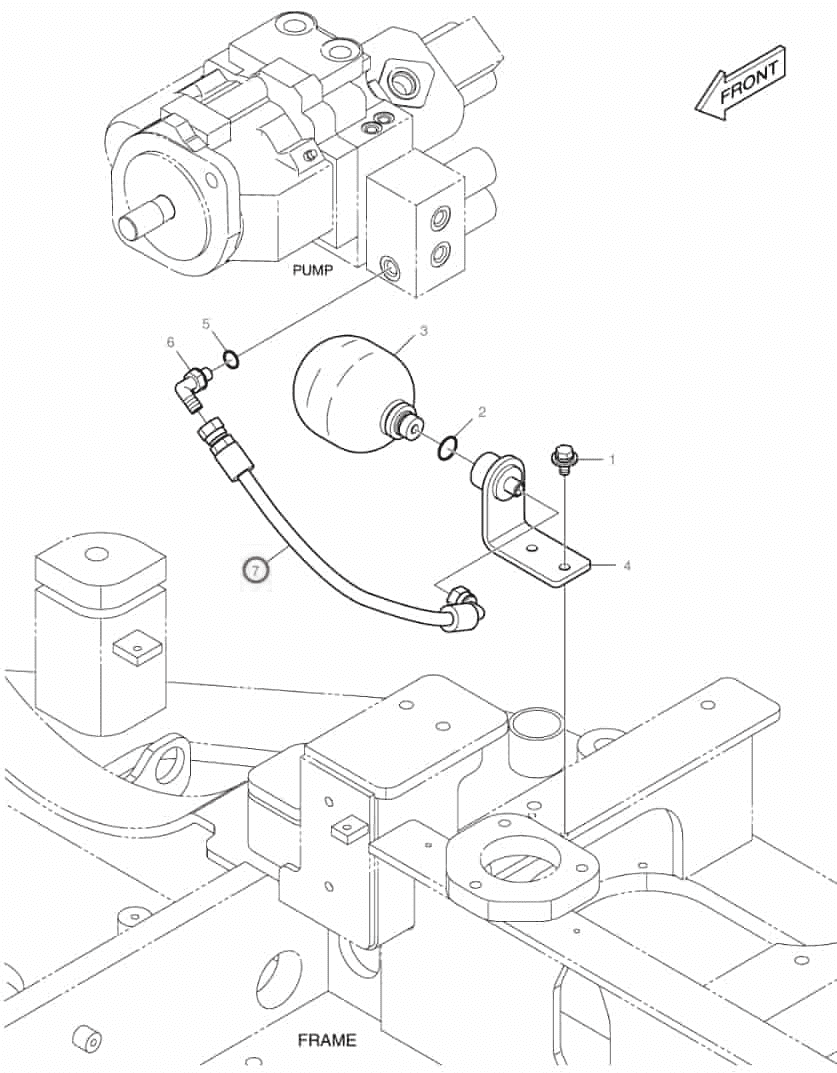

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number DS2093070 before removing the hose.

Doosan DX60R installation diagram showing hydraulic hose DS2093070 at Pipe No. 7 — **Doosan DX60R**Part DS2093070 · Pipe No. 7Open full-size diagram

Repair specifications

Part number: DS2093070
Diagram pipe number: 7
Installation route: 液压泵~蓄能器
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 300 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
