Individual hose record

DS2094358 Hose Repair Specifications

Excavator · Doosan · DX60R · Attachments – Quick Coupler

Finished length1,320 mm

Locate this hose

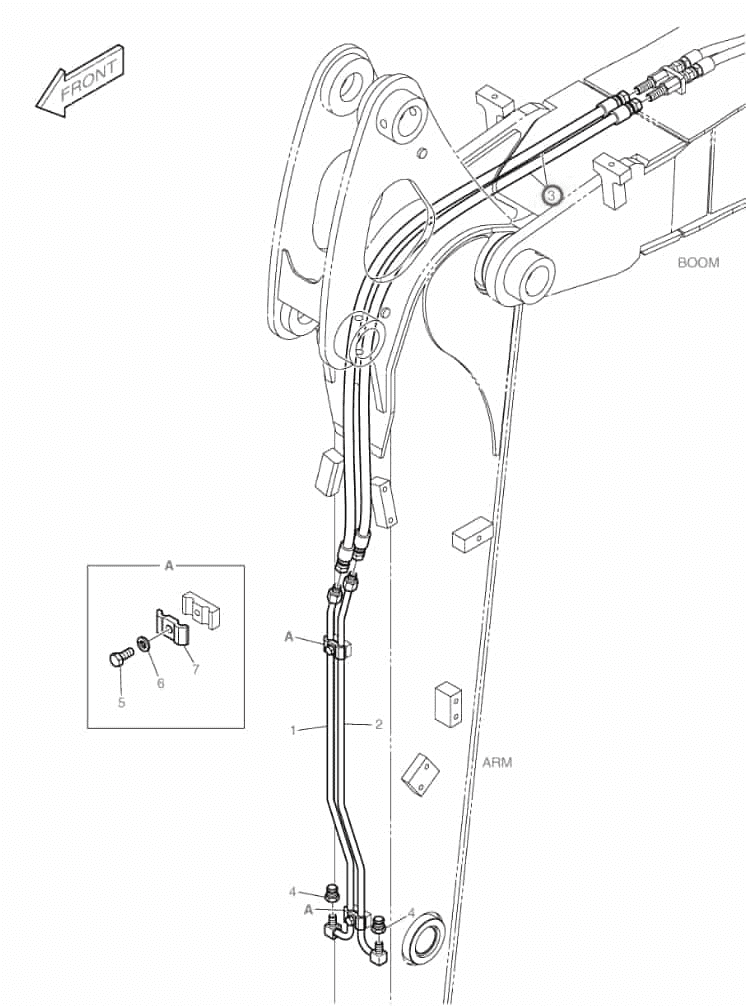

Installation diagram — Pipe No. 3

Locate Pipe No. 3 in the diagram, then confirm part number DS2094358 before removing the hose.

Doosan DX60R installation diagram showing hydraulic hose DS2094358 at Pipe No. 3 — **Doosan DX60R**Part DS2094358 · Pipe No. 3Open full-size diagram

Repair specifications

Part number: DS2094358
Diagram pipe number: 3
Installation route: 大臂(快换)~小臂(快换)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,320 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 6

DS2053975

Installation route: 大臂(前段)~大臂(后段)

Length: 2,470 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 8

DS2093212

Installation route: 快速联轴阀T口~进回油阀T8口

Length: 780 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 7

DS2093070

Installation route: 液压泵~蓄能器

Length: 300 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 9

DS2094369

Installation route: 大臂(快换)~快速联轴阀B口

Length: 2,180 mm
Specification: -
Left fitting: Female threadOriginal Chinese: 内螺纹
Right fitting: 90° elbow, female threadOriginal Chinese: 90°内螺纹

View full repair specifications

Diagram Pipe No. 7

DS2093583

Installation route: 液压泵A2口~快速联轴阀P口

Length: 1,130 mm
Specification: -
Left fitting: Female threadOriginal Chinese: 内螺纹
Right fitting: 90° elbow, female threadOriginal Chinese: 90°内螺纹

View full repair specifications

Diagram Pipe No. 8

2184-1026D210

Installation route: 大臂(前段)~大臂(后段)

Length: 2,500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 9

DS2094402

Installation route: 大臂(快换)~快速联轴阀B口

Length: 2,130 mm
Specification: -
Left fitting: Female threadOriginal Chinese: 内螺纹
Right fitting: 90° elbow, female threadOriginal Chinese: 90°内螺纹

View full repair specifications

Diagram Pipe No. 10

DS2094368

Installation route: 大臂(快换)~快速联轴阀A口

Length: 2,130 mm
Specification: -
Left fitting: Female threadOriginal Chinese: 内螺纹
Right fitting: 90° elbow, female threadOriginal Chinese: 90°内螺纹

View full repair specifications
