Individual hose record
4472408 Hose Repair Specifications
Excavator · Hitachi · ZX120-3 · Grease Lines
Finished length340 mm
Locate this hose

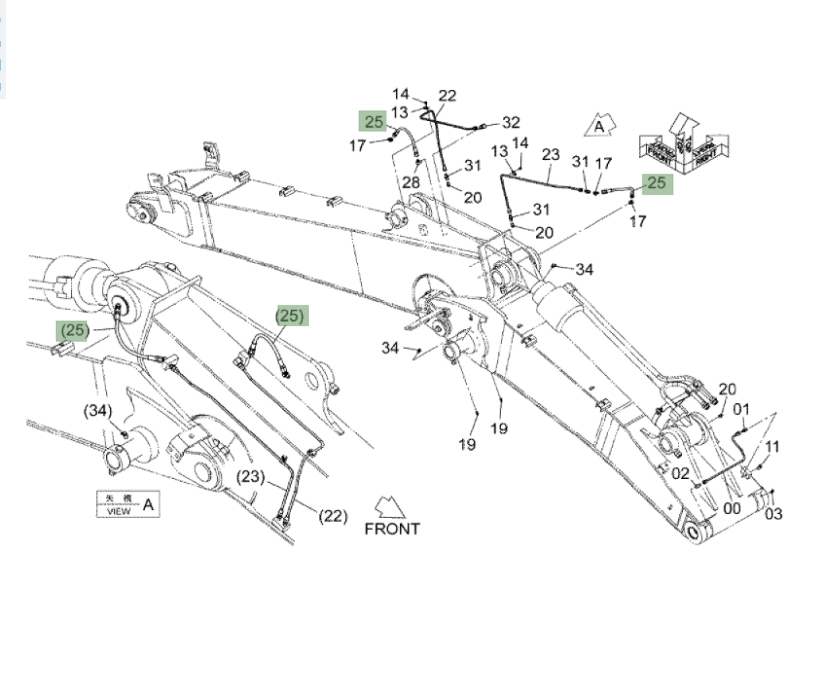

Installation diagram — Pipe No. 25
Locate Pipe No. 25 in the diagram, then confirm part number 4472408 before removing the hose.
Repair specifications
- Part number
- 4472408
- Diagram pipe number
- 25
- Installation route
- Two-piece boom grease lineOriginal Chinese: 分节大臂黄油管
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 340 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 2
