Individual hose record
73050200G178 Hose Repair Specifications
Excavator · Sunward · SWE150W · Attachments – Breaker
Finished length640 mm
Locate this hose

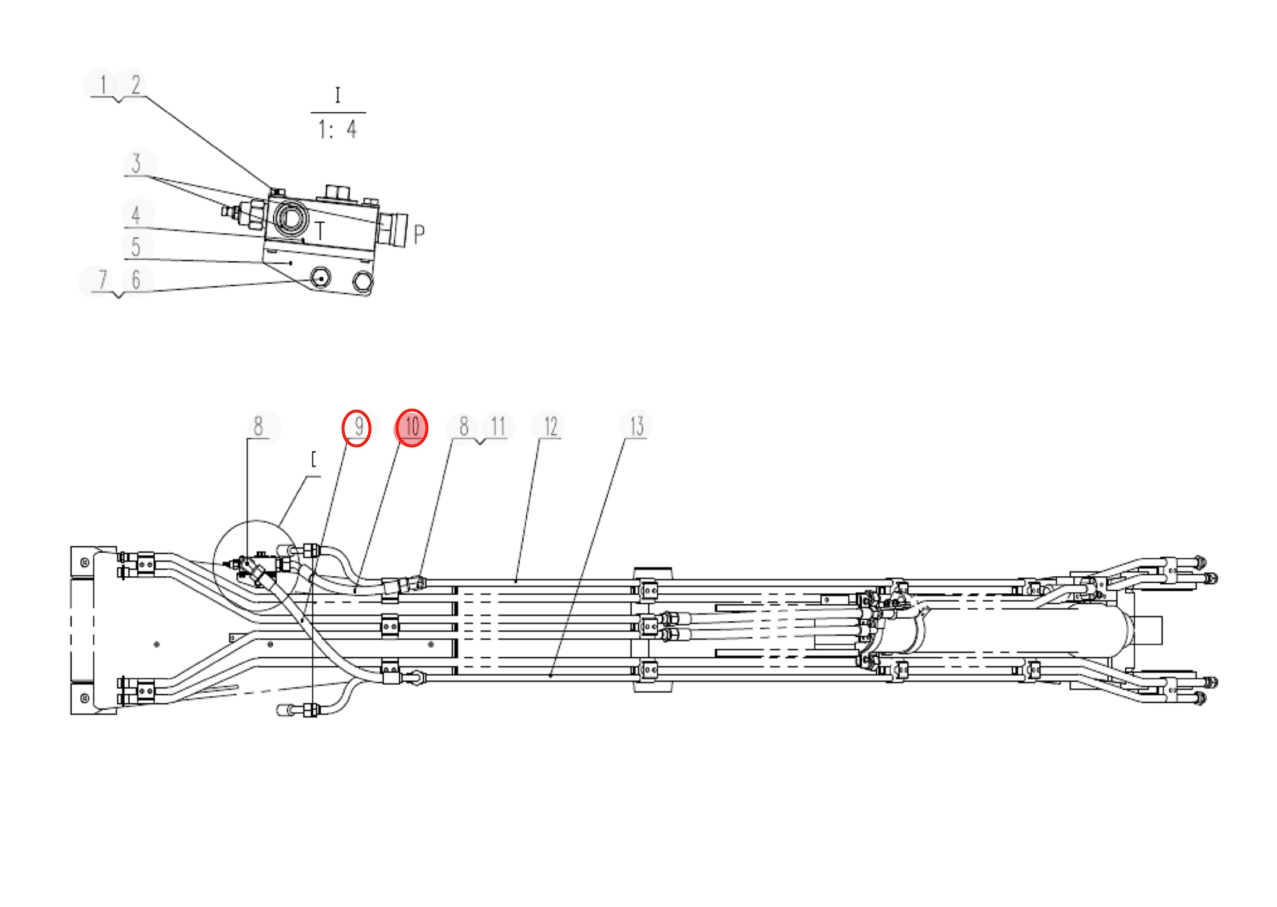

Installation diagram — Pipe No. 9
Locate Pipe No. 9 in the diagram, then confirm part number 73050200G178 before removing the hose.
Repair specifications
- Part number
- 73050200G178
- Diagram pipe number
- 9
- Installation route
- 右大臂(破碎器)~截止溢流阀(破碎器)
- Hose specification
- DN20;6SH-12;35MPa
- Finished length
- 640 mm
- Working pressure
- 35 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-重型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-重型
- Quantity
- 1
