Individual hose record
730502001985 Hose Repair Specifications
Excavator · Sunward · SWE150W · Attachments – Breaker
Finished length3,150 mm
Locate this hose

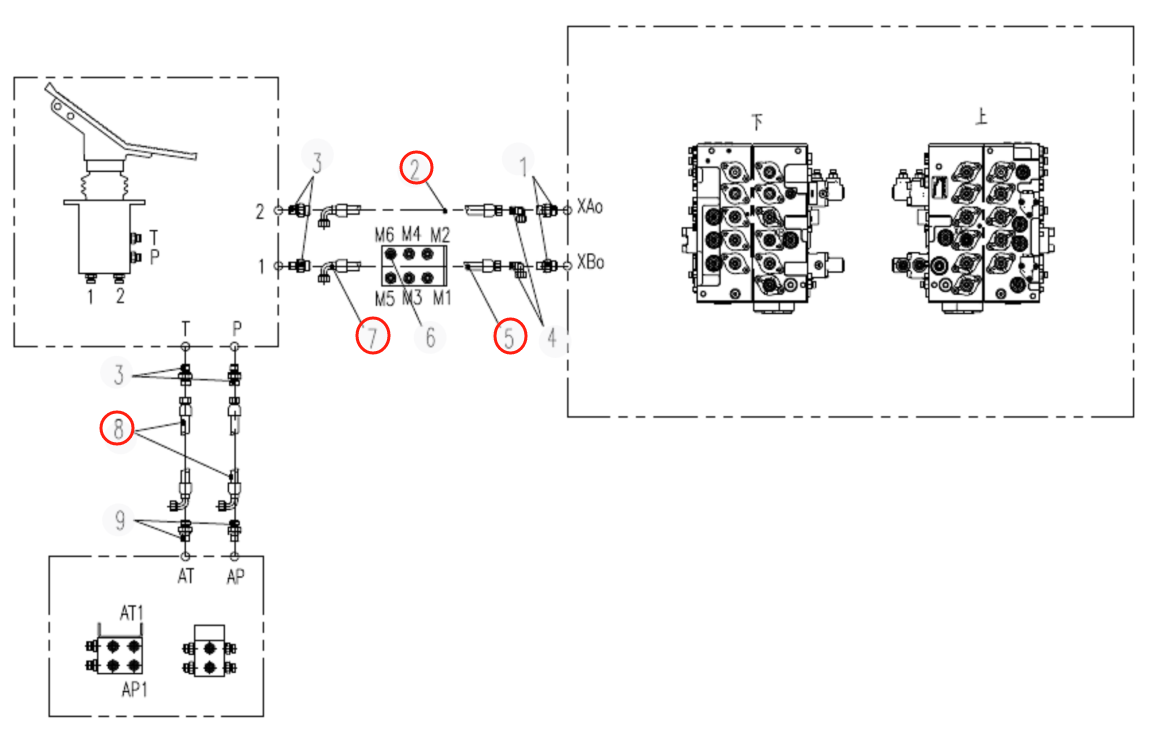

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 730502001985 before removing the hose.
Repair specifications
- Part number
- 730502001985
- Diagram pipe number
- 2
- Installation route
- 破碎器踏板2~分配阀下XAO
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 3,150 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
