Individual hose record

730501006438 Hose Repair Specifications

Excavator · Sunward · SWE150W · Attachments – Breaker

Finished length1,000 mm

Locate this hose

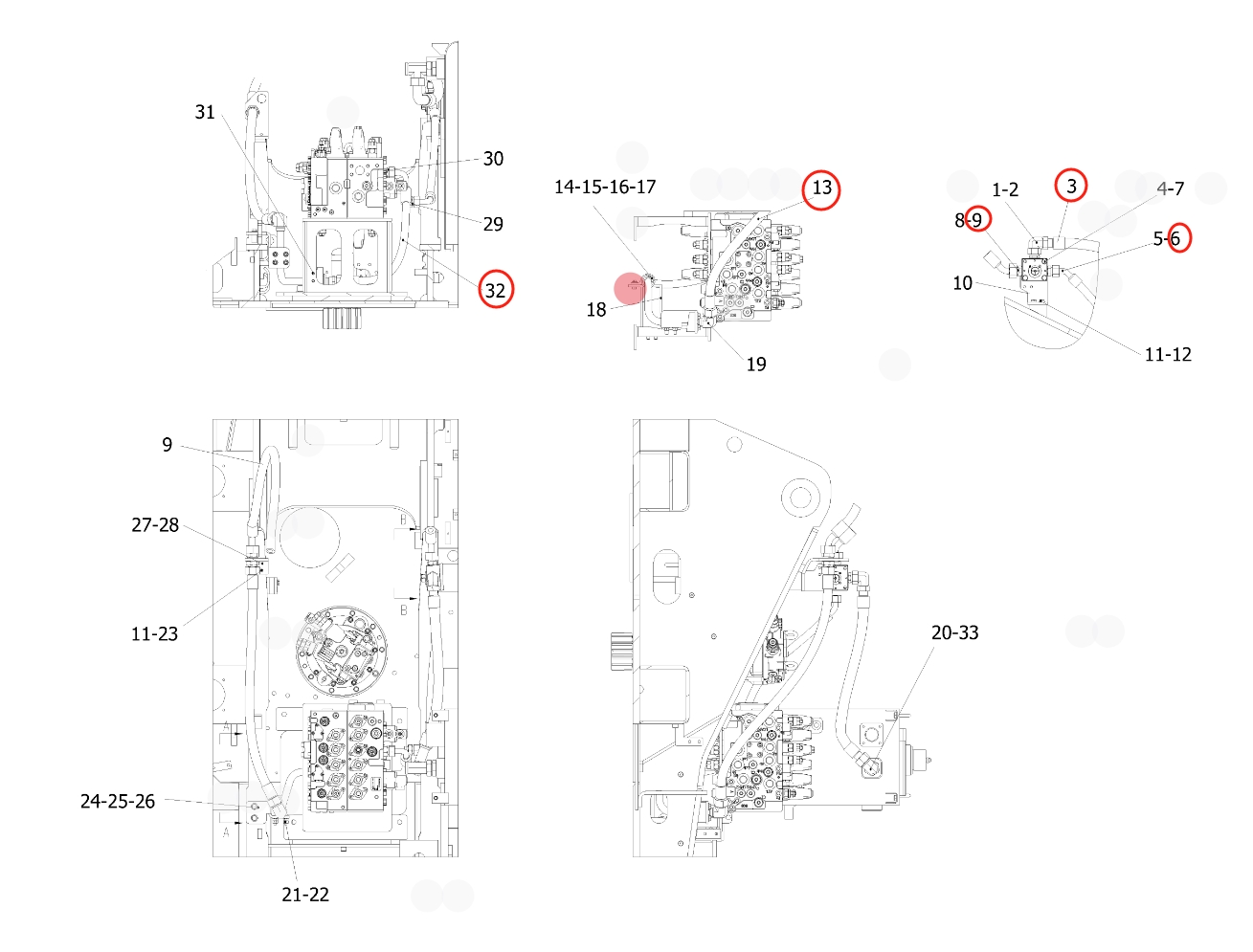

Installation diagram — Pipe No. 13

Locate Pipe No. 13 in the diagram, then confirm part number 730501006438 before removing the hose.

Sunward SWE150W installation diagram showing hydraulic hose 730501006438 at Pipe No. 13 — Sunward SWE150WPart 730501006438 · Pipe No. 13Open full-size diagram

Repair specifications

Part number: 730501006438
Diagram pipe number: 13
Installation route: 大臂(破碎器)~分配阀左
Hose specification: DN20;6SH-12;35MPa
Finished length: 1,000 mm
Working pressure: 35 MPa
Left fitting: 公制内螺纹24°锥带O形圈-重型
Right fitting: 公制内螺纹24°锥带O形圈-重型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 9

73050200G178

Installation route: 右大臂(破碎器)~截止溢流阀(破碎器)

Length: 640 mm
Specification: DN20;6SH-12;35MPa
Left fitting: 公制内螺纹24°锥带O形圈-重型
Right fitting: 90°公制内螺纹24°锥带O形圈-重型

View full repair specifications

Diagram Pipe No. 3

730501006738

Installation route: 右过渡阀块(破碎器)~液压油箱左

Length: 670 mm
Specification: DN25;1SN-16;8.8MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 2

730502001985

Installation route: 破碎器踏板2~分配阀下XAO

Length: 3,150 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 10

73050200D357

Installation route: 大臂左(破碎器)~截止溢流阀(破碎器)

Length: 410 mm
Specification: DN20;6SH-12;35MPa
Left fitting: 公制内螺纹24°锥带O形圈-重型
Right fitting: 45°公制内螺纹24°锥带O形圈-重型

View full repair specifications

Diagram Pipe No. 32

73050200D405

Installation route: 接头(破碎器)~分配阀右

Length: 600 mm
Specification: DN20;6SH-12;35MPa
Left fitting: 公制内螺纹24°锥带O形圈-重型
Right fitting: 90°公制内螺纹24°锥带O形圈-重型

View full repair specifications

Diagram Pipe No. 7

730502000799

Installation route: 破碎器踏板1~过渡阀块(破碎器)

Length: 2,000 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications
