Individual hose record

161159A1 Hose Repair Specifications

Excavator · Case · CX130 · Swivel Joint

Finished length430 mm

Locate this hose

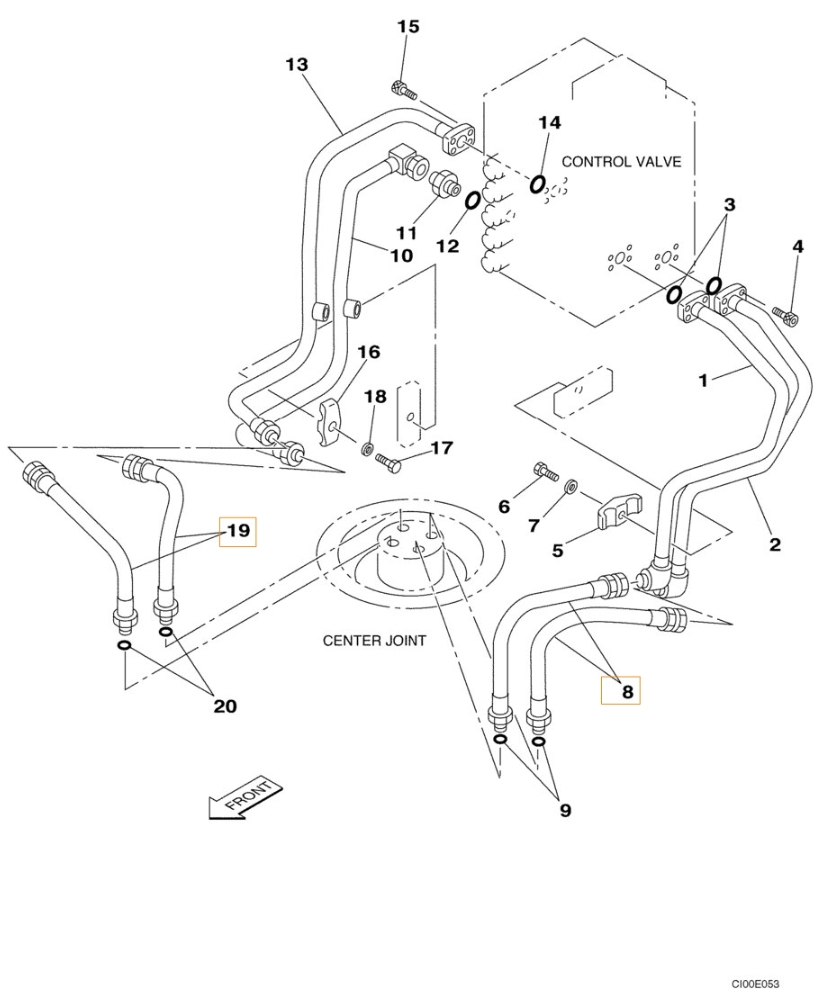

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 161159A1 before removing the hose.

Case CX130 installation diagram showing hydraulic hose 161159A1 at Pipe No. 8 — **Case CX130**Part 161159A1 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: 161159A1
Diagram pipe number: 8
Installation route: 回转接头~分配阀左
Hose specification: DN19;4SP-12;35MPa
Finished length: 430 mm
Working pressure: 35 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 英制外螺纹平面密封
Quantity: 2
