Individual hose record

KMA1168 Hose Repair Specifications

Excavator · Case · CX130 · Swivel Joint

Finished length1,680 mm

Locate this hose

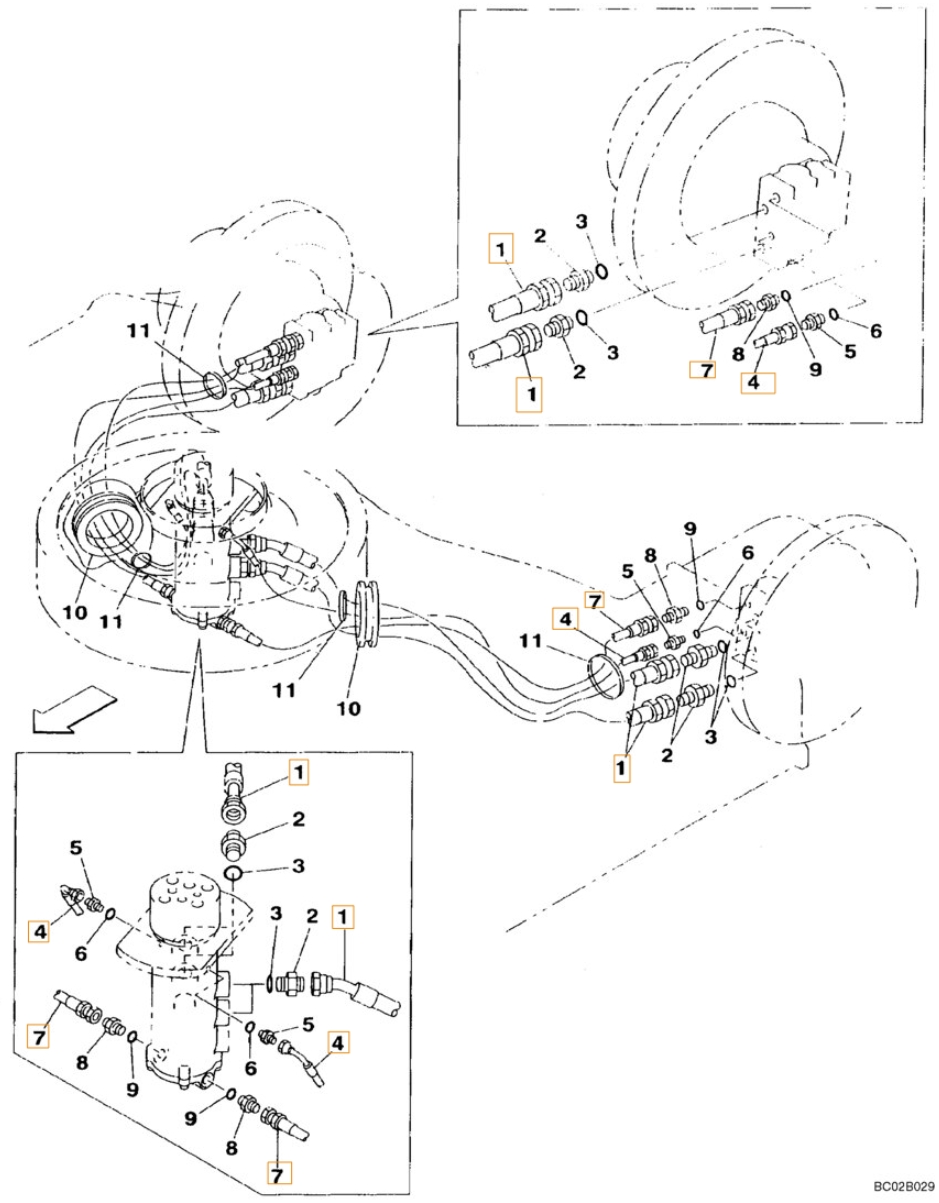

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number KMA1168 before removing the hose.

Case CX130 installation diagram showing hydraulic hose KMA1168 at Pipe No. 1 — **Case CX130**Part KMA1168 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: KMA1168
Diagram pipe number: 1
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
Hose specification: DN19;4SP-12;35MPa
Finished length: 1,680 mm
Working pressure: 35 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
Quantity: 4
