Individual hose record

KNJ2750 Hose Repair Specifications

Excavator · Case · CX130 · Swivel Joint

Finished length800 mm

Locate this hose

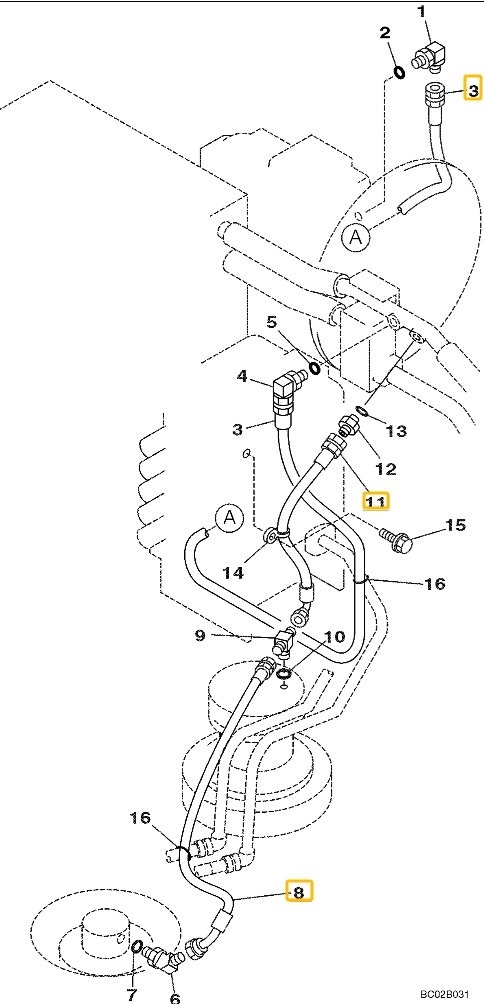

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number KNJ2750 before removing the hose.

Case CX130 installation diagram showing hydraulic hose KNJ2750 at Pipe No. 8 — **Case CX130**Part KNJ2750 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: KNJ2750
Diagram pipe number: 8
Installation route: 回转接头~回转马达(回油)
Hose specification: DN13;1SN-08;16MPa
Finished length: 800 mm
Working pressure: 16 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
Quantity: 1
