Individual hose record
4448946 Hose Repair Specifications
Excavator · Hitachi · ZX850LC-3 · Hydraulic Pump
Finished length750 mm
Locate this hose

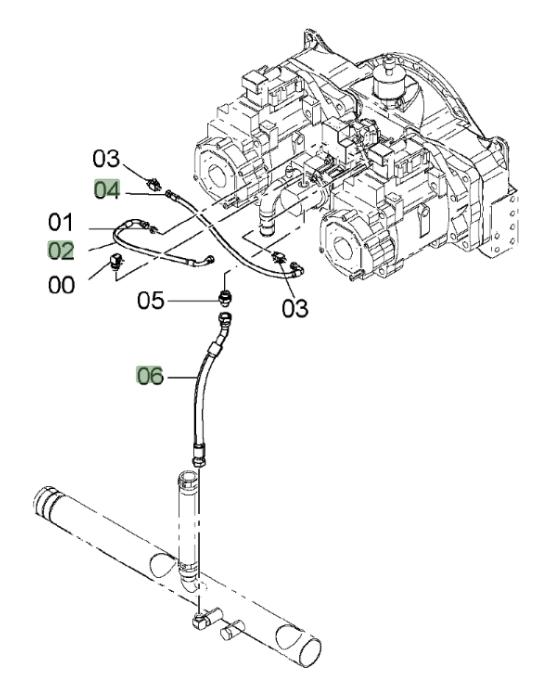

Installation diagram — Pipe No. 4
Locate Pipe No. 4 in the diagram, then confirm part number 4448946 before removing the hose.
Repair specifications
- Part number
- 4448946
- Diagram pipe number
- 4
- Installation route
- 液压泵右~先导泵
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 750 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
