Individual hose record
4701250 Hose Repair Specifications
Excavator · Hitachi · ZX850LC-3 · Hydraulic Pump
Finished length850 mm
Locate this hose

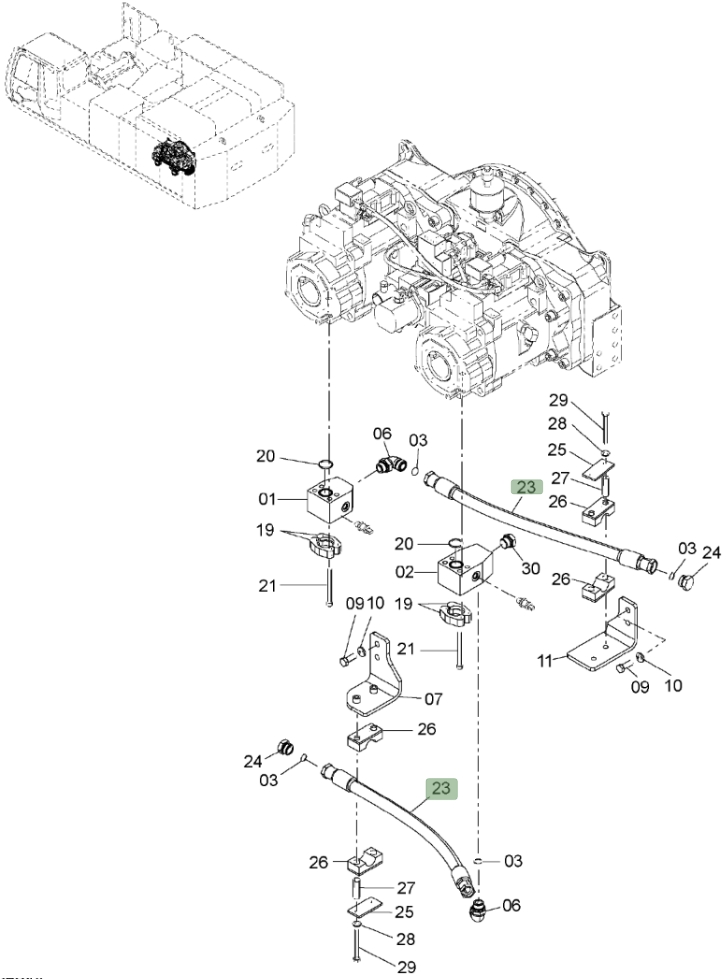

Installation diagram — Pipe No. 23
Locate Pipe No. 23 in the diagram, then confirm part number 4701250 before removing the hose.
Repair specifications
- Part number
- 4701250
- Diagram pipe number
- 23
- Installation route
- 液压泵~堵头(减震管)
- Hose specification
- DN25;4SP-16;34.5MPa
- Finished length
- 850 mm
- Working pressure
- 34.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 2
