Individual hose record

KTV13280 Hose Repair Specifications

Excavator · Case · CX470B · Boom Assembly

Finished length1,400 mm

Locate this hose

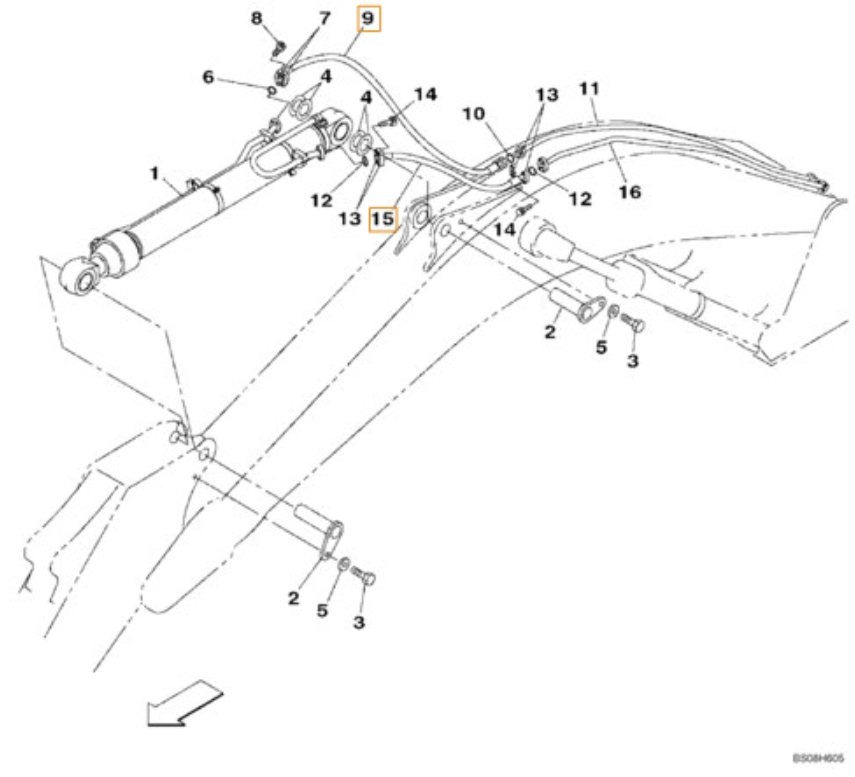

Installation diagram — Pipe No. 15

Locate Pipe No. 15 in the diagram, then confirm part number KTV13280 before removing the hose.

Case CX470B installation diagram showing hydraulic hose KTV13280 at Pipe No. 15 — Case CX470BPart KTV13280 · Pipe No. 15Open full-size diagram

Repair specifications

Part number: KTV13280
Diagram pipe number: 15
Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左
Hose specification: DN32;4SH-20;32.5MPa
Finished length: 1,400 mm
Working pressure: 32.5 MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Quantity: 1
