Individual hose record
2184-1100D237 Hose Repair Specifications
Excavator · Doosan · DX140LC · Boom Assembly
Finished length1,350 mm
Locate this hose

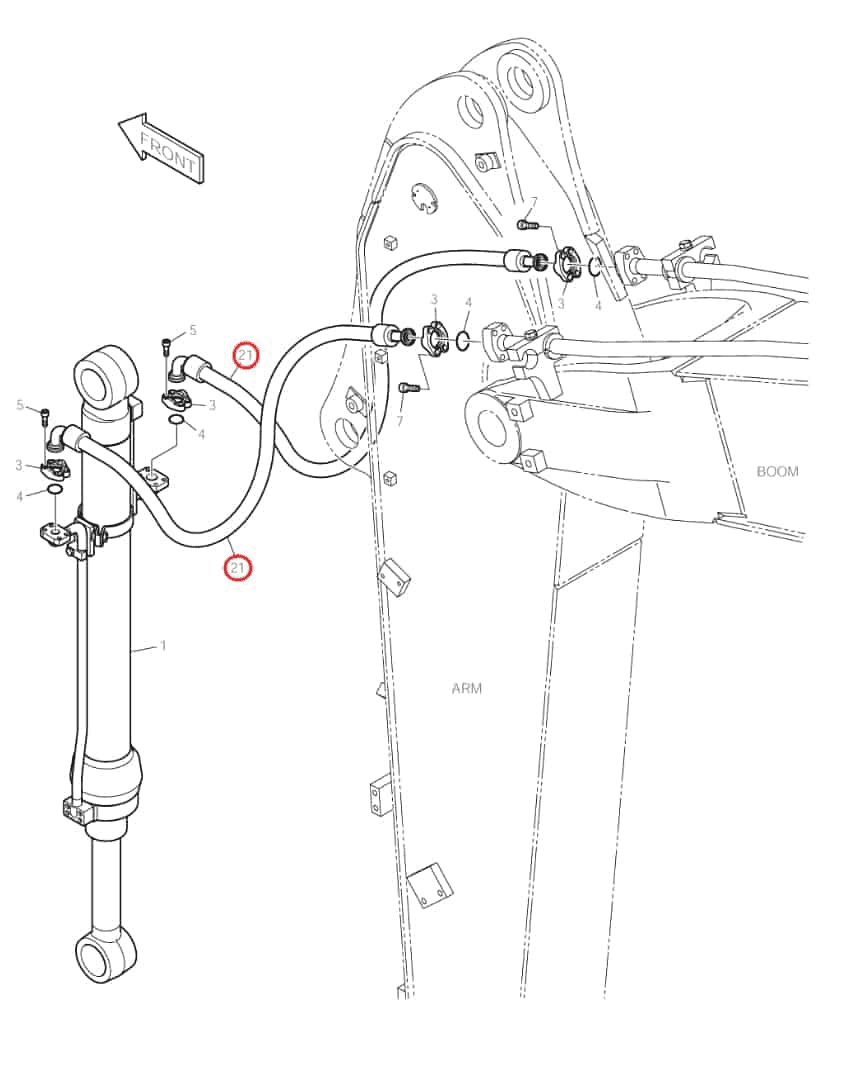

Installation diagram — Pipe No. 21
Locate Pipe No. 21 in the diagram, then confirm part number 2184-1100D237 before removing the hose.
Repair specifications
- Part number
- 2184-1100D237
- Diagram pipe number
- 21
- Installation route
- Bucket cylinderOriginal Chinese: 铲斗油缸
- Hose specification
- DN19;4SH-12;42MPa
- Finished length
- 1,350 mm
- Working pressure
- 42 MPa
- Left fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Right fitting
- 90° heavy-series flangeOriginal Chinese: 90°法兰-重型
- Quantity
- 2
