Individual hose record
DS2013318 Hose Repair Specifications
Excavator · Doosan · DX140LC · Boom Assembly
Finished length1,100 mm
Locate this hose

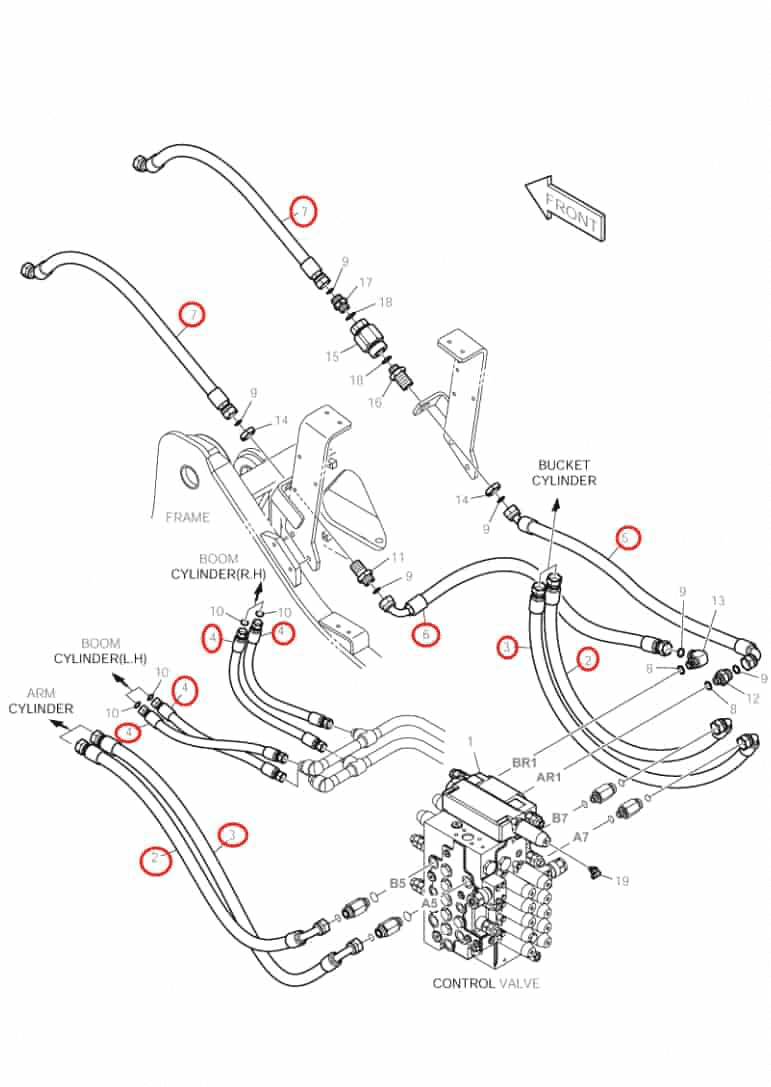

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number DS2013318 before removing the hose.
Repair specifications
- Part number
- DS2013318
- Diagram pipe number
- 2
- Installation route
- 大臂左1/左4~分配阀B5/B7口
- Hose specification
- DN19;4SH-12;42MPa
- Finished length
- 1,100 mm
- Working pressure
- 42 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 2
