Individual hose record
DS2040643 Hose Repair Specifications
Excavator · Doosan · DX140LC · Boom Assembly
Finished length720 mm
Locate this hose

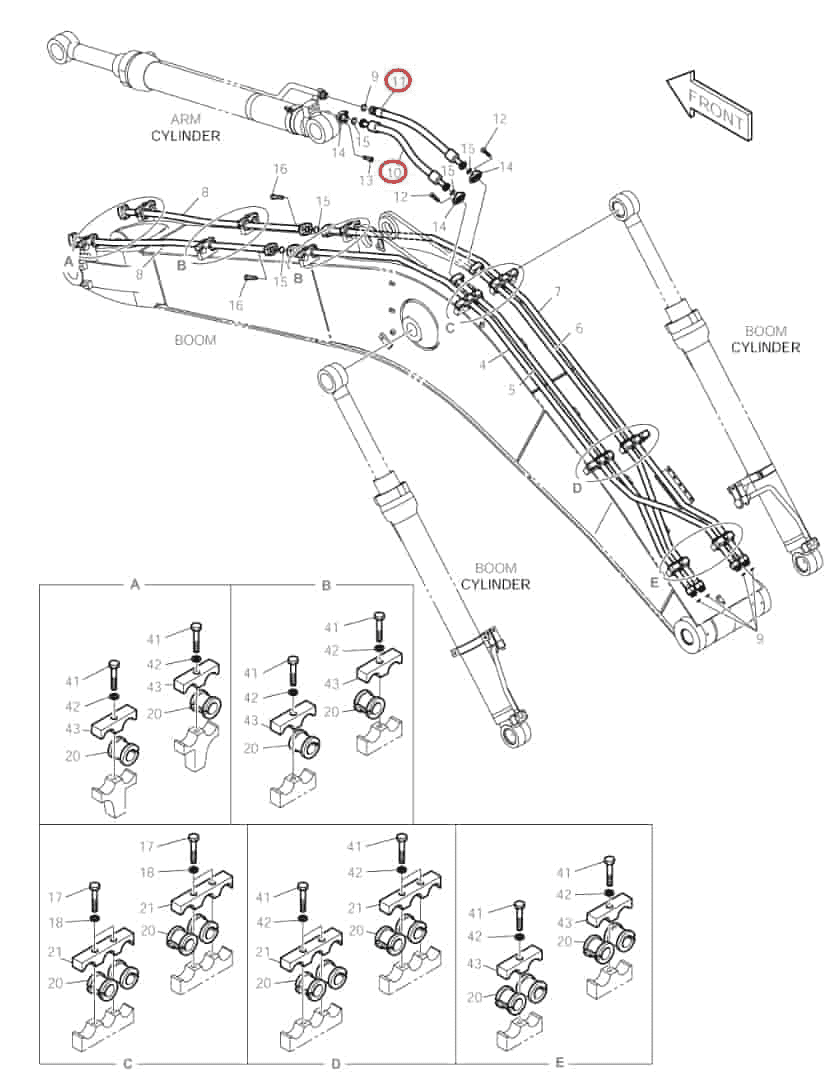

Installation diagram — Pipe No. 10
Locate Pipe No. 10 in the diagram, then confirm part number DS2040643 before removing the hose.
Repair specifications
- Part number
- DS2040643
- Diagram pipe number
- 10
- Installation route
- Arm cylinder — leftOriginal Chinese: 小臂油缸左
- Hose specification
- DN19;4SH-12;42MPa
- Finished length
- 720 mm
- Working pressure
- 42 MPa
- Left fitting
- Light-series flangeOriginal Chinese: 法兰-轻型
- Right fitting
- 90° light-series flangeOriginal Chinese: 90°法兰-轻型
- Quantity
- 1
