Diagram Pipe No. 36A
4657309
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Length
- 420 mm
- Specification
- DN12;1SN-8;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
Individual hose record
4420423 Hose Repair Specifications
Excavator · Hitachi · ZX190W-3 · Swivel Joint
Finished length500 mm
Locate this hose

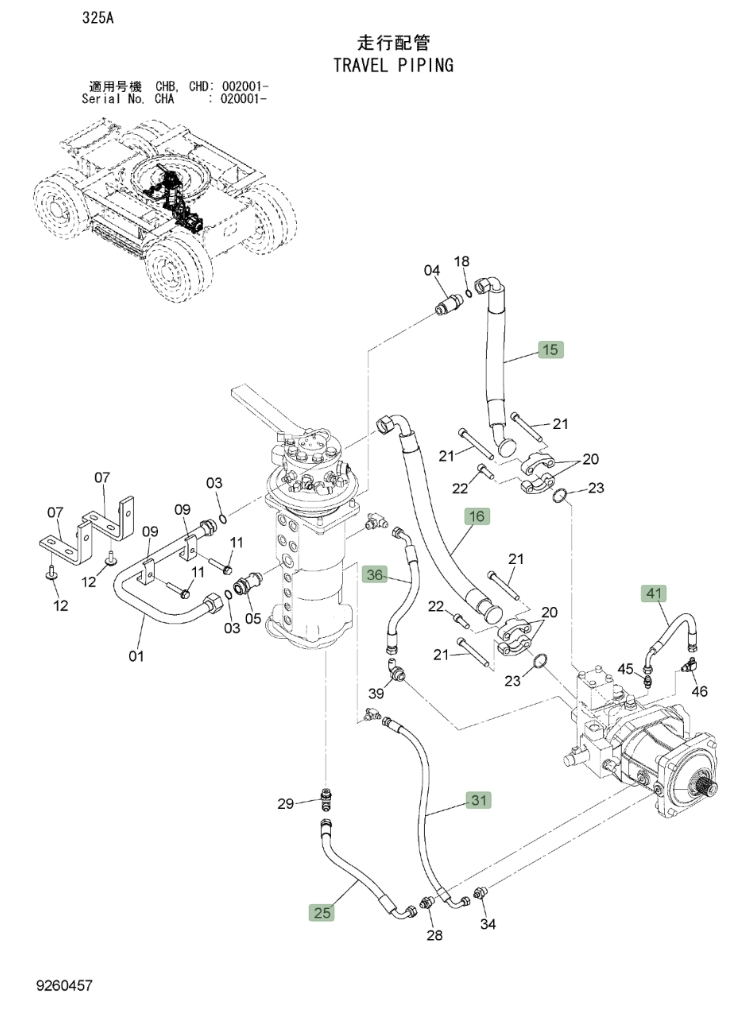

Installation diagram — Pipe No. 25A
Locate Pipe No. 25A in the diagram, then confirm part number 4420423 before removing the hose.
Repair specifications
- Part number
- 4420423
- Diagram pipe number
- 25A
- Installation route
- Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Hose specification
- DN12;1SN-8;7Mpa
- Finished length
- 500 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
Same system
Related Hoses
- Length
- 750 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Length
- 350 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- 90°美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
Diagram Pipe No. 36
9265995
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Length
- 420 mm
- Specification
- DN12;1SN-8;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Length
- 1,500 mm
- Specification
- DN6;1SN-4;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
Diagram Pipe No. 1A
4315339
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Length
- 1,050 mm
- Specification
- DN10;4SH-06;44.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Length
- 1,200 mm
- Specification
- DN12;1SN-8;7MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Length
- 1,700 mm
- Specification
- DN10;2SN-6;20.5MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
