4304469 Hose Repair Specifications
Excavator · Hitachi · ZX190W-3 · Swivel Joint
Finished length1,200 mm
Locate this hose

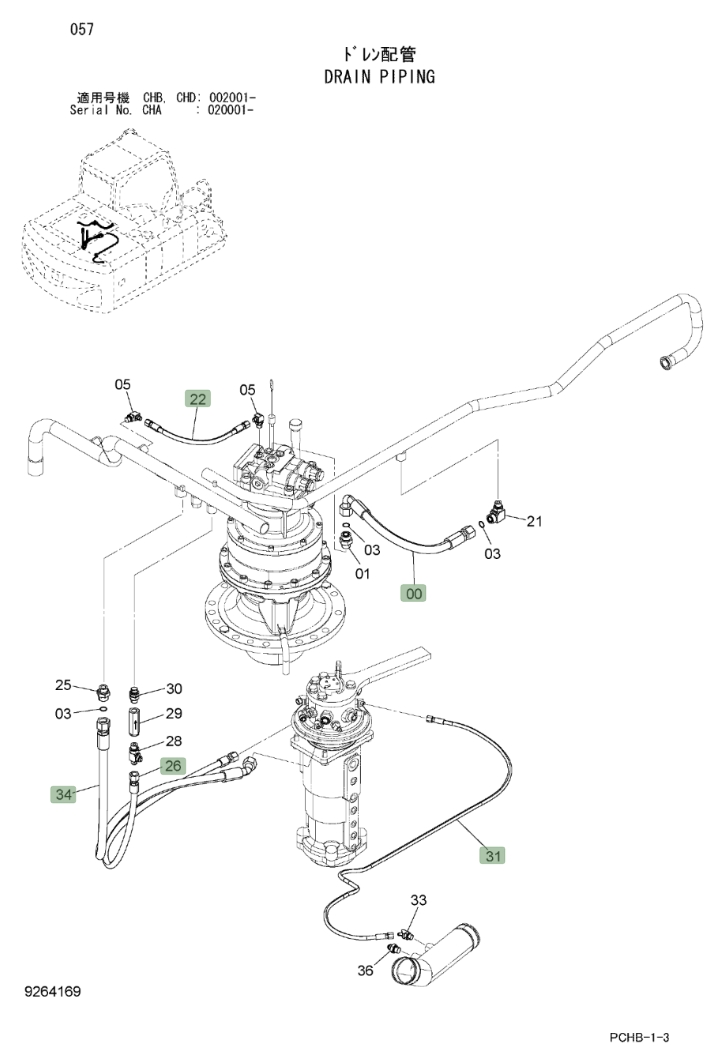

Installation diagram — Pipe No. 26
Locate Pipe No. 26 in the diagram, then confirm part number 4304469 before removing the hose.
Repair specifications
- Part number
- 4304469
- Diagram pipe number
- 26
- Installation route
- 回转接头~回油铁管(液压油箱)
- Hose specification
- DN12;1SN-8;7MPa
- Finished length
- 1,200 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
