Individual hose record

4442429 Hose Repair Specifications

Excavator · Hitachi · ZX135US-6N · Attachments – Breaker

Finished length450 mm

Locate this hose

Installation diagram — Pipe No. 1

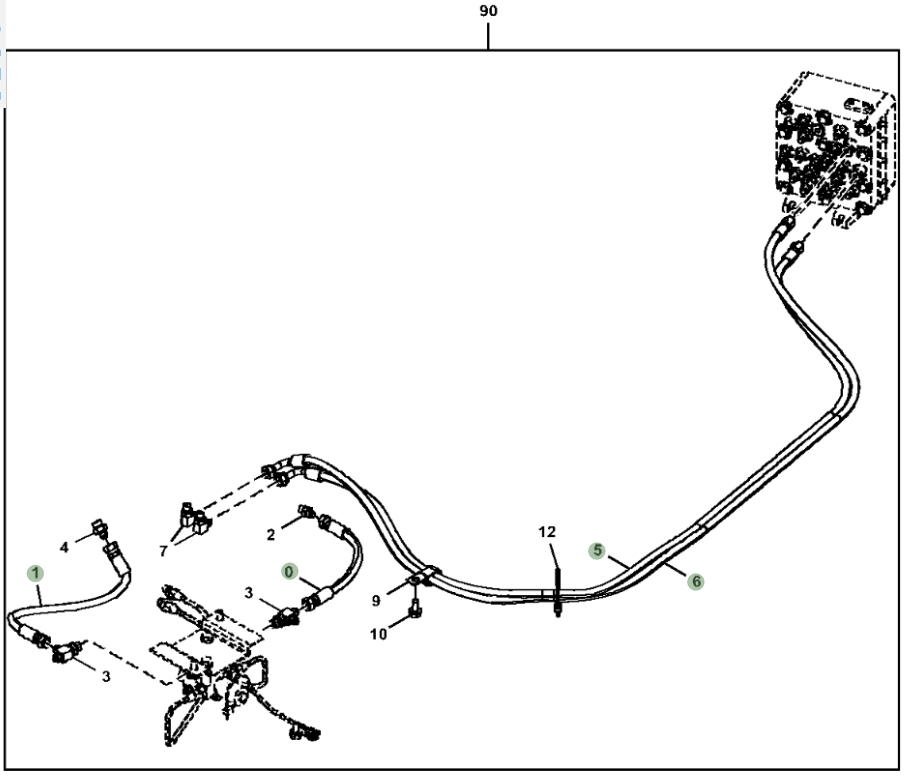

Locate Pipe No. 1 in the diagram, then confirm part number 4442429 before removing the hose.

Hitachi ZX135US-6N installation diagram showing hydraulic hose 4442429 at Pipe No. 1 — Hitachi ZX135US-6NPart 4442429 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: 4442429
Diagram pipe number: 1
Installation route: 破碎器踏板~进回油阀
Hose specification: DN10;1SN-06;18MPa
Finished length: 450 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1
