Individual hose record

4671446 Hose Repair Specifications

Excavator · Hitachi · ZX135US-6N · Attachments – Breaker

Finished length1,850 mm

Locate this hose

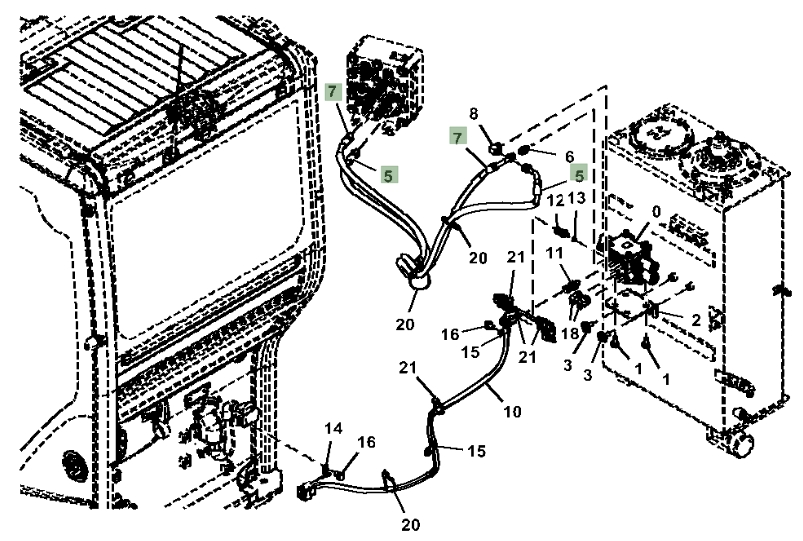

Installation diagram — Pipe No. 5

Locate Pipe No. 5 in the diagram, then confirm part number 4671446 before removing the hose.

Hitachi ZX135US-6N installation diagram showing hydraulic hose 4671446 at Pipe No. 5 — Hitachi ZX135US-6NPart 4671446 · Pipe No. 5Open full-size diagram

Repair specifications

Part number: 4671446
Diagram pipe number: 5
Installation route: 电磁阀(液压油箱)~中转接头
Hose specification: DN10;1SN-6;18MPa
Finished length: 1,850 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥双六角
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1
