Individual hose record

4401963 Hose Repair Specifications

Excavator · Hitachi · ZX135US-6N · Attachments – Breaker

Finished length2,200 mm

Locate this hose

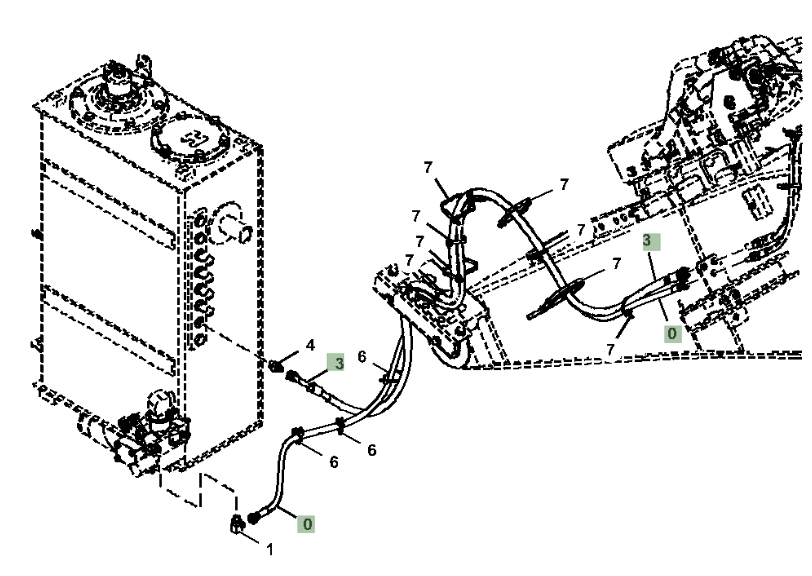

Installation diagram — Pipe No. 0

Locate Pipe No. 0 in the diagram, then confirm part number 4401963 before removing the hose.

Hitachi ZX135US-6N installation diagram showing hydraulic hose 4401963 at Pipe No. 0 — Hitachi ZX135US-6NPart 4401963 · Pipe No. 0Open full-size diagram

Repair specifications

Part number: 4401963
Diagram pipe number: 0
Installation route: 控制阀(破碎器)~接头(大臂)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,200 mm
Working pressure: 22.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 3

4668866

Installation route: 液压油箱~接头(大臂)

Length: 2,050 mm
Specification: DN10;1SN-6;18MPa
Left fitting: 美制内螺纹74°内锥双六角
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 18

4710223

Installation route: 过渡阀块(破碎器)~液压油箱

Length: 600 mm
Specification: DN6;1SN-04;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 45°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 1

4442429

Installation route: 破碎器踏板~进回油阀

Length: 450 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 0

4660514

Installation route: 破碎器踏板~进回油阀

Length: 300 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 5

4671446

Installation route: 电磁阀(液压油箱)~中转接头

Length: 1,850 mm
Specification: DN10;1SN-6;18MPa
Left fitting: 美制内螺纹74°内锥双六角
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications
