Individual hose record

4343209 Hose Repair Specifications

Excavator · Hitachi · ZX650LC-3 · Attachments – Breaker

Finished length900 mm

Locate this hose

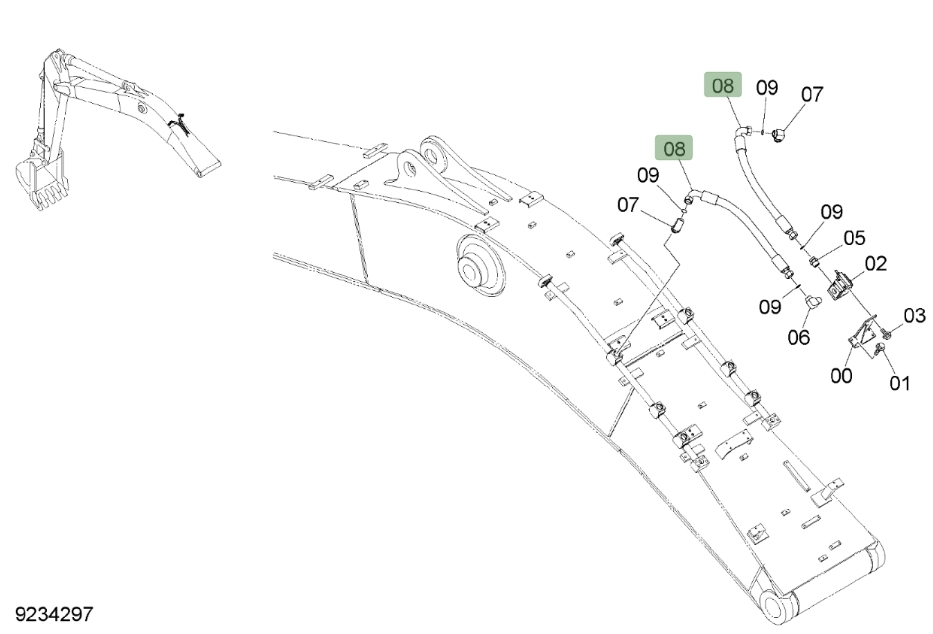

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 4343209 before removing the hose.

Hitachi ZX650LC-3 installation diagram showing hydraulic hose 4343209 at Pipe No. 8 — Hitachi ZX650LC-3Part 4343209 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: 4343209
Diagram pipe number: 8
Installation route: 大臂(后段)~卸压安全阀(破碎器)
Hose specification: DN32;4SP-20;32Mpa
Finished length: 900 mm
Working pressure: 32 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 9

4648204

Installation route: 破碎器踏板~进回油阀

Length: 550 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 45°美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 8

4648205

Installation route: 破碎器踏板~进回油阀

Length: 650 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 45°美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 0

4658727

Installation route: 中转接头~分配阀上

Length: 750 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 18

4629993

Installation route: 过渡阀块(破碎器)~中转接头

Length: 2,400 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 1

4658728

Installation route: 中转接头~分配阀下

Length: 1,400 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
