4629993 Hose Repair Specifications

Excavator · Hitachi · ZX650LC-3 · Attachments – Breaker

Finished length2,400 mm

Locate this hose

Installation diagram — Pipe No. 18

Locate Pipe No. 18 in the diagram, then confirm part number 4629993 before removing the hose.

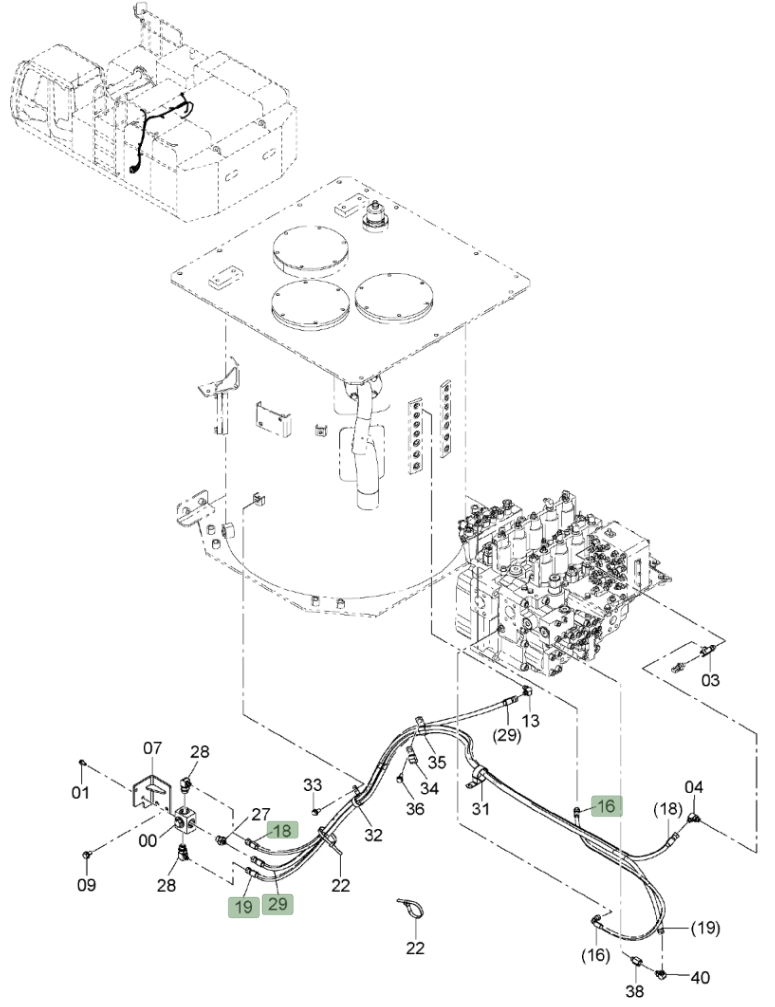

Hitachi ZX650LC-3 installation diagram showing hydraulic hose 4629993 at Pipe No. 18 — Hitachi ZX650LC-3Part 4629993 · Pipe No. 18Open full-size diagram

Repair specifications

Part number: 4629993
Diagram pipe number: 18
Installation route: 过渡阀块(破碎器)~中转接头
Hose specification: DN10;1SN-6;7Mpa
Finished length: 2,400 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1
