Individual hose record

4658727 Hose Repair Specifications

Excavator · Hitachi · ZX650LC-3 · Attachments – Breaker

Finished length750 mm

Locate this hose

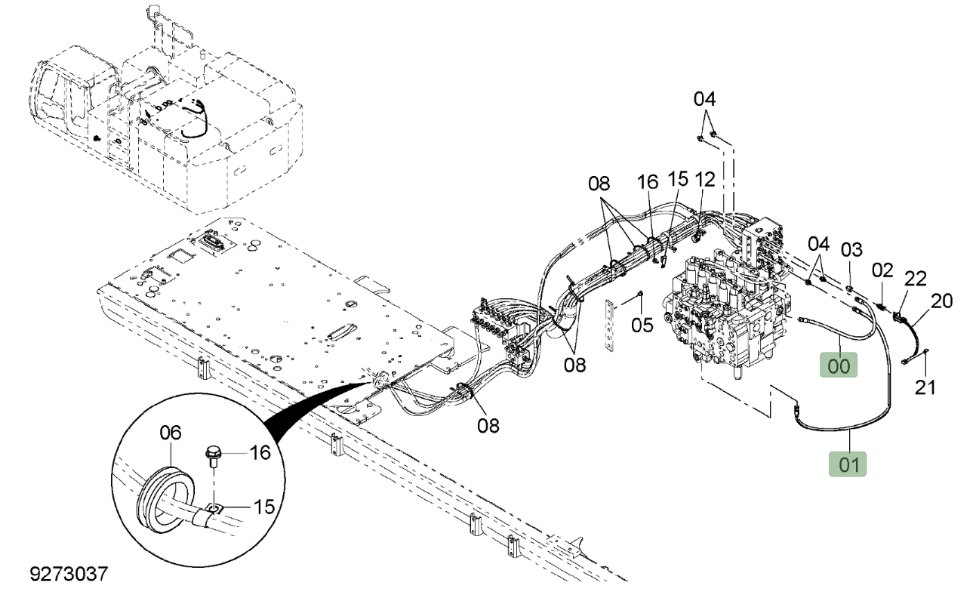

Installation diagram — Pipe No. 0

Locate Pipe No. 0 in the diagram, then confirm part number 4658727 before removing the hose.

Hitachi ZX650LC-3 installation diagram showing hydraulic hose 4658727 at Pipe No. 0 — Hitachi ZX650LC-3Part 4658727 · Pipe No. 0Open full-size diagram

Repair specifications

Part number: 4658727
Diagram pipe number: 0
Installation route: 中转接头~分配阀上
Hose specification: DN10;1SN-6;7Mpa
Finished length: 750 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1
