Individual hose record
4656849 Hose Repair Specifications
Excavator · Hitachi · ZX650LC-3 · Grease Lines
Finished length2,500 mm
Locate this hose

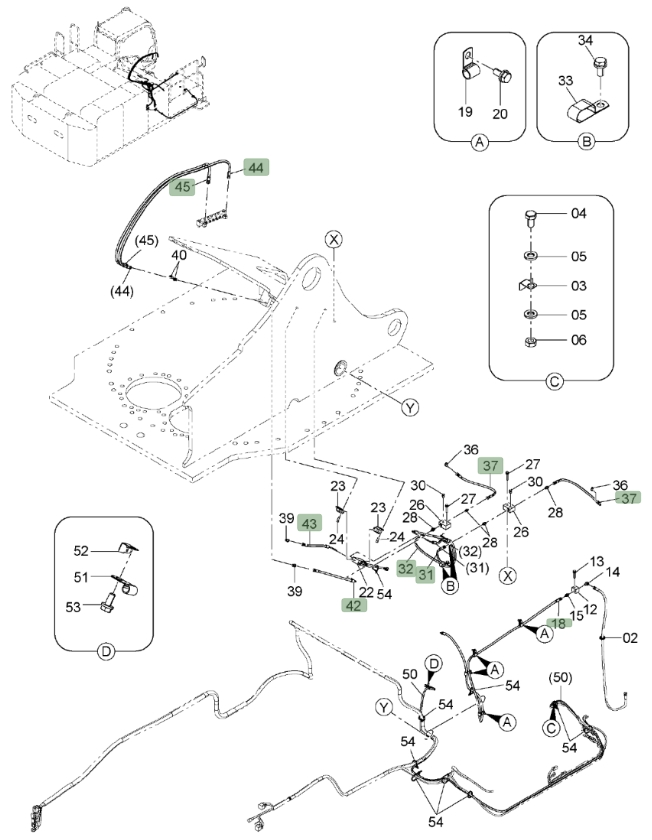

Installation diagram — Pipe No. 18
Locate Pipe No. 18 in the diagram, then confirm part number 4656849 before removing the hose.
Repair specifications
- Part number
- 4656849
- Diagram pipe number
- 18
- Installation route
- 大臂黄油管
- Hose specification
- DN6;1SN-4;10.5MPa
- Finished length
- 2,500 mm
- Working pressure
- 10.5 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 公制卡套式
- Quantity
- 1
