Individual hose record
4317872 Hose Repair Specifications
Excavator · Hitachi · ZX650LC-3 · Grease Lines
Finished length1,200 mm
Locate this hose

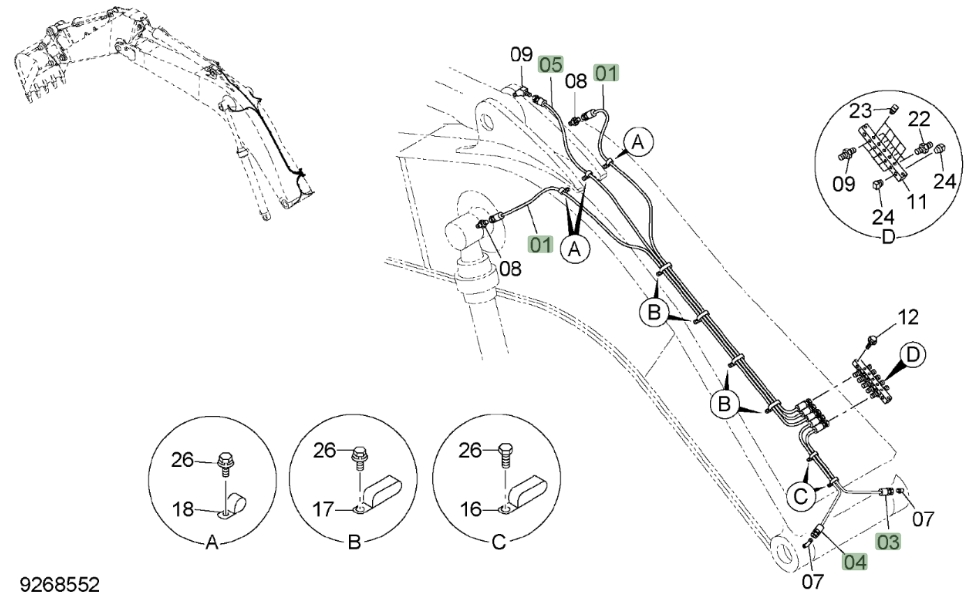

Installation diagram — Pipe No. 3
Locate Pipe No. 3 in the diagram, then confirm part number 4317872 before removing the hose.
Repair specifications
- Part number
- 4317872
- Diagram pipe number
- 3
- Installation route
- 右大臂销黄油管
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 1,200 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
