Individual hose record
9163647 Hose Repair Specifications
Excavator · Hitachi · ZX350F · Swivel Joint
Finished length1,450 mm
Locate this hose

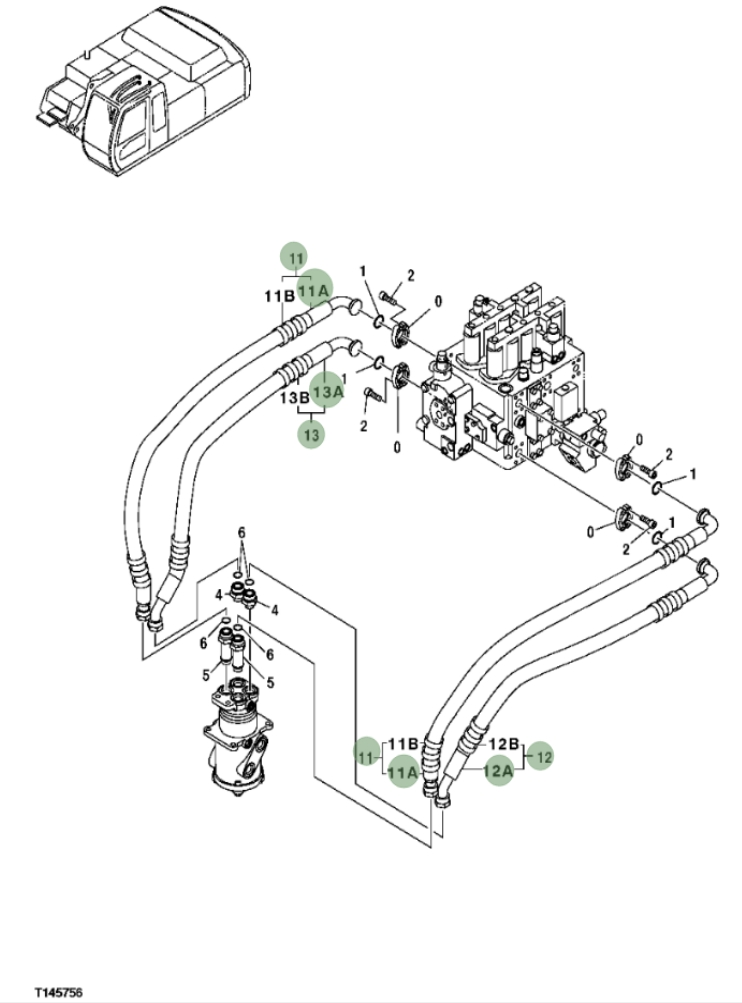

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number 9163647 before removing the hose.
Repair specifications
- Part number
- 9163647
- Diagram pipe number
- 11
- Installation route
- 回转接头~分配阀左上/右上
- Hose specification
- DN25;4SH-16;38.8MPa
- Finished length
- 1,450 mm
- Working pressure
- 38.8 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° light-series flangeOriginal Chinese: 90°法兰-轻型
- Quantity
- 2
