Individual hose record
4313440 Hose Repair Specifications
Excavator · Hitachi · ZX350F · Swivel Joint
Finished length2,200 mm
Locate this hose

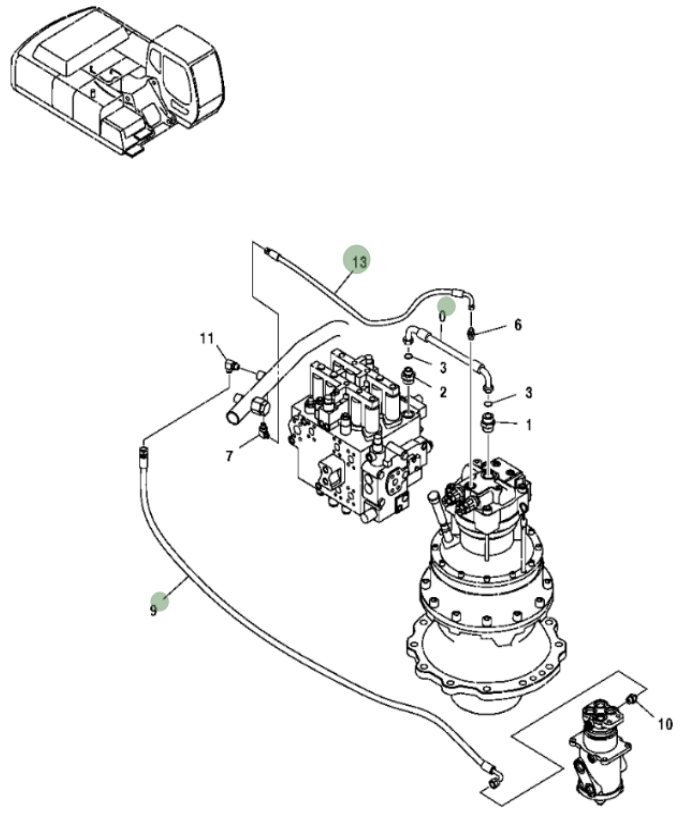

Installation diagram — Pipe No. 9
Locate Pipe No. 9 in the diagram, then confirm part number 4313440 before removing the hose.
Repair specifications
- Part number
- 4313440
- Diagram pipe number
- 9
- Installation route
- 回转接头~回油铁管(液压油箱)
- Hose specification
- DN13;2SN-08;27.5MPa
- Finished length
- 2,200 mm
- Working pressure
- 27.5 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
