Individual hose record

4642276 Hose Repair Specifications

Excavator · Hitachi · ZX350LC-5G · Attachments – Breaker

Finished length1,650 mm

Locate this hose

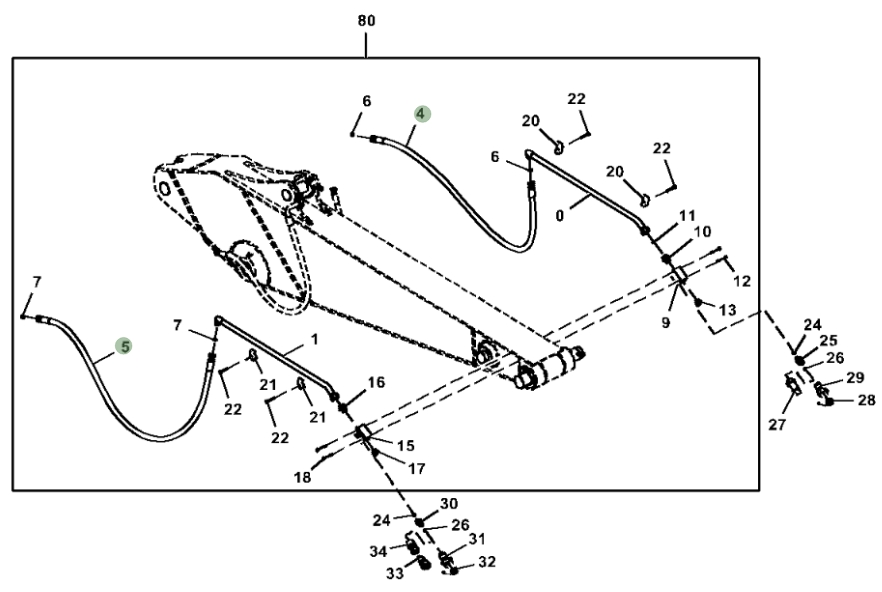

Installation diagram — Pipe No. 5

Locate Pipe No. 5 in the diagram, then confirm part number 4642276 before removing the hose.

Hitachi ZX350LC-5G installation diagram showing hydraulic hose 4642276 at Pipe No. 5 — **Hitachi ZX350LC-5G**Part 4642276 · Pipe No. 5Open full-size diagram

Repair specifications

Part number: 4642276
Diagram pipe number: 5
Installation route: 小臂破碎器截止阀
Hose specification: DN32;4SP-20;35Mpa
Finished length: 1,650 mm
Working pressure: 35 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1
