Individual hose record
DS20131315 Hose Repair Specifications
Excavator · Doosan · DX160W-3 · Attachments
Finished length780 mm
Locate this hose

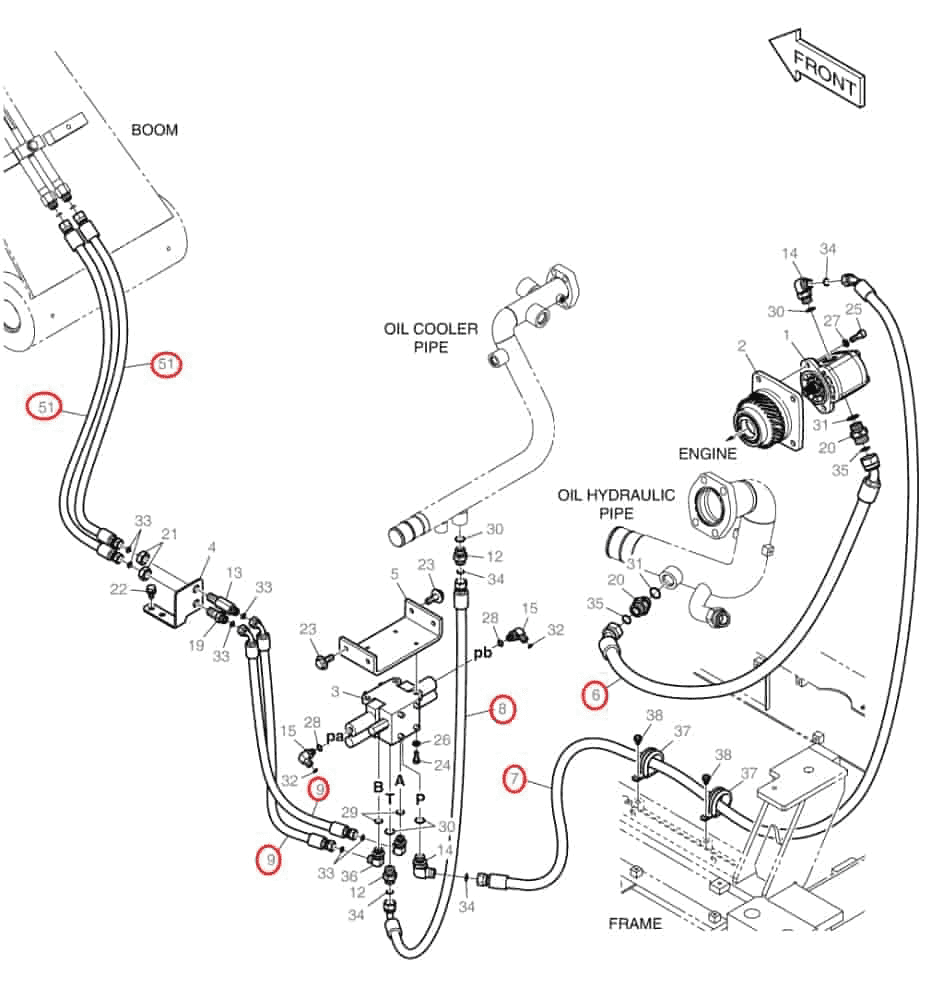

Installation diagram — Pipe No. 8
Locate Pipe No. 8 in the diagram, then confirm part number DS20131315 before removing the hose.
Repair specifications
- Part number
- DS20131315
- Diagram pipe number
- 8
- Installation route
- 控制阀T口~回油铁管(液压油箱)
- Hose specification
- DN13;1SN-08;16MPa
- Finished length
- 780 mm
- Working pressure
- 16 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 1
