Individual hose record
DS2121267 Hose Repair Specifications
Excavator · Doosan · DX160W-3 · Attachments
Finished length1,590 mm
Locate this hose

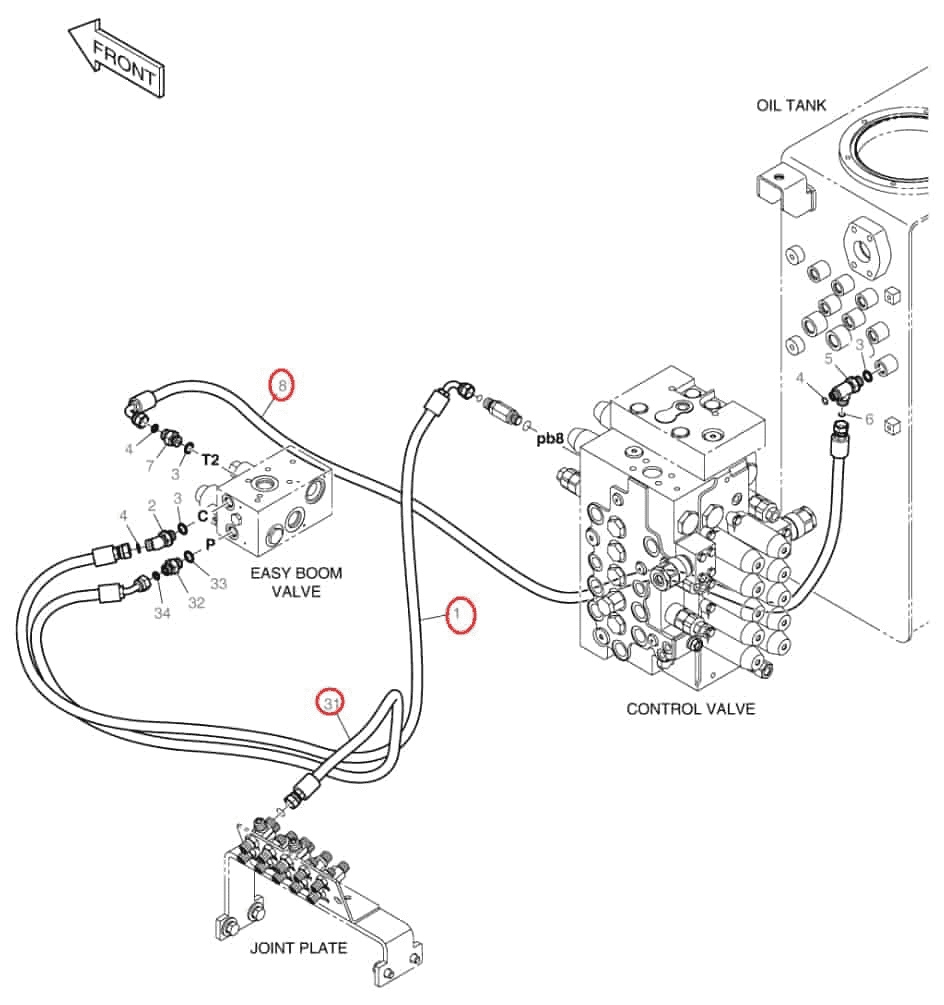

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number DS2121267 before removing the hose.
Repair specifications
- Part number
- DS2121267
- Diagram pipe number
- 1
- Installation route
- 分配阀PB8口~大臂缓冲阀C口
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 1,590 mm
- Working pressure
- 18 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 1
