Individual hose record
4722325 Hose Repair Specifications
Excavator · Hitachi · EX1200-7 · Grease Lines
Finished length3,750 mm
Locate this hose

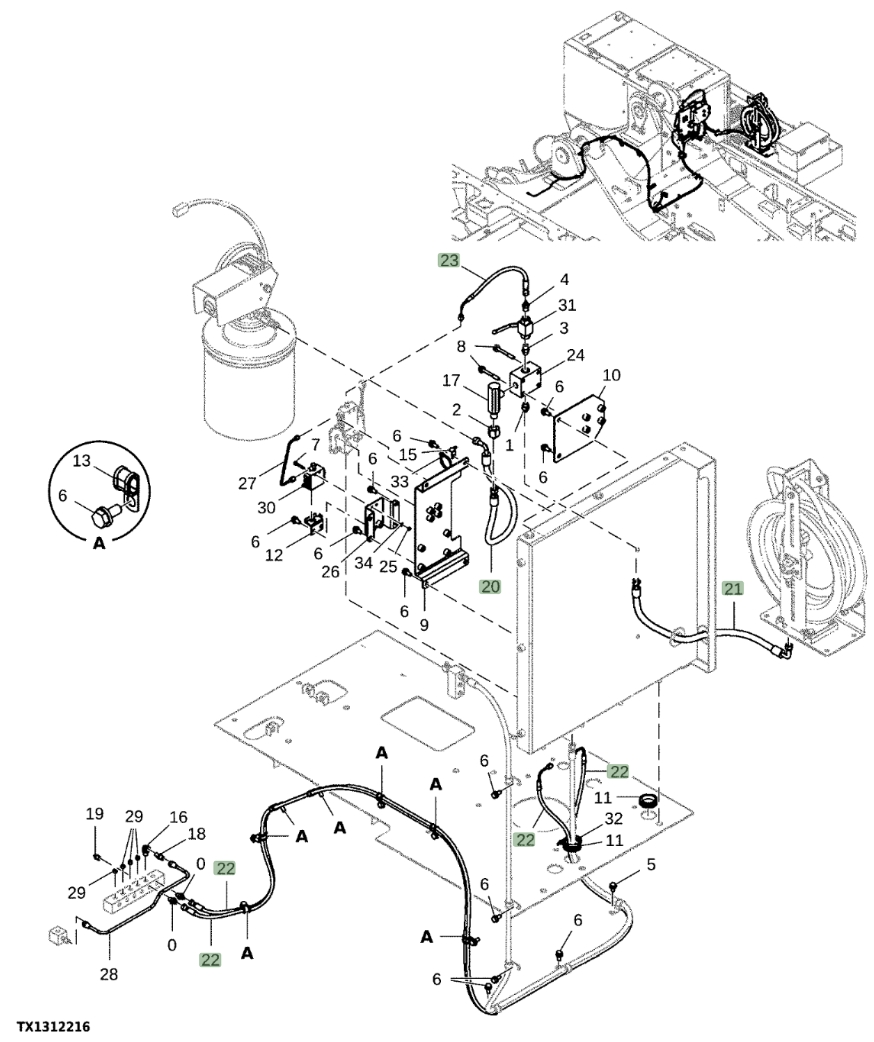

Installation diagram — Pipe No. 22
Locate Pipe No. 22 in the diagram, then confirm part number 4722325 before removing the hose.
Repair specifications
- Part number
- 4722325
- Diagram pipe number
- 22
- Installation route
- 过渡阀块(黄油)~过渡阀块(大臂下)
- Hose specification
- DN5;2层纤维-3;14MPa
- Finished length
- 3,750 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°公制卡套式
- Quantity
- 2
