Individual hose record
4435078 Hose Repair Specifications
Excavator · Hitachi · EX1200-7 · Grease Lines
Finished length2,950 mm
Locate this hose

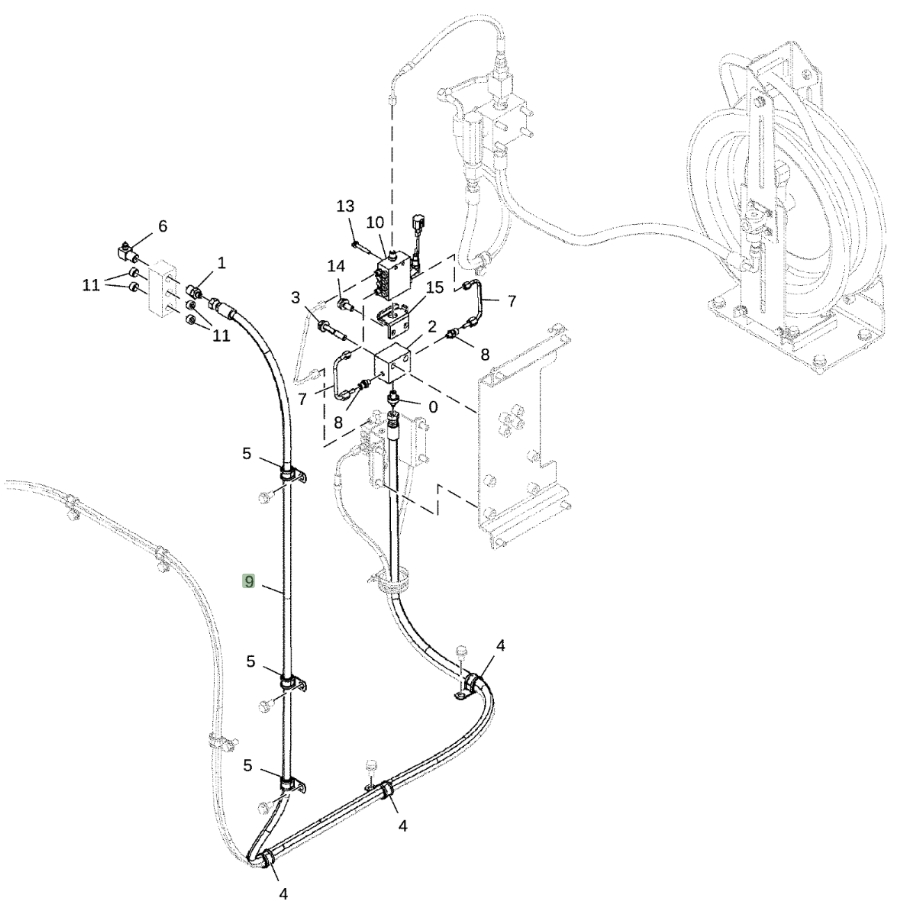

Installation diagram — Pipe No. 9
Locate Pipe No. 9 in the diagram, then confirm part number 4435078 before removing the hose.
Repair specifications
- Part number
- 4435078
- Diagram pipe number
- 9
- Installation route
- 分流阀(黄油)~过渡阀块(黄油)
- Hose specification
- DN6;1SN-4;20.5MPa
- Finished length
- 2,950 mm
- Working pressure
- 20.5 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
