Individual hose record
4467598 Hose Repair Specifications
Excavator · Hitachi · ZX210W · Control Lever
Finished length1,300 mm
Locate this hose

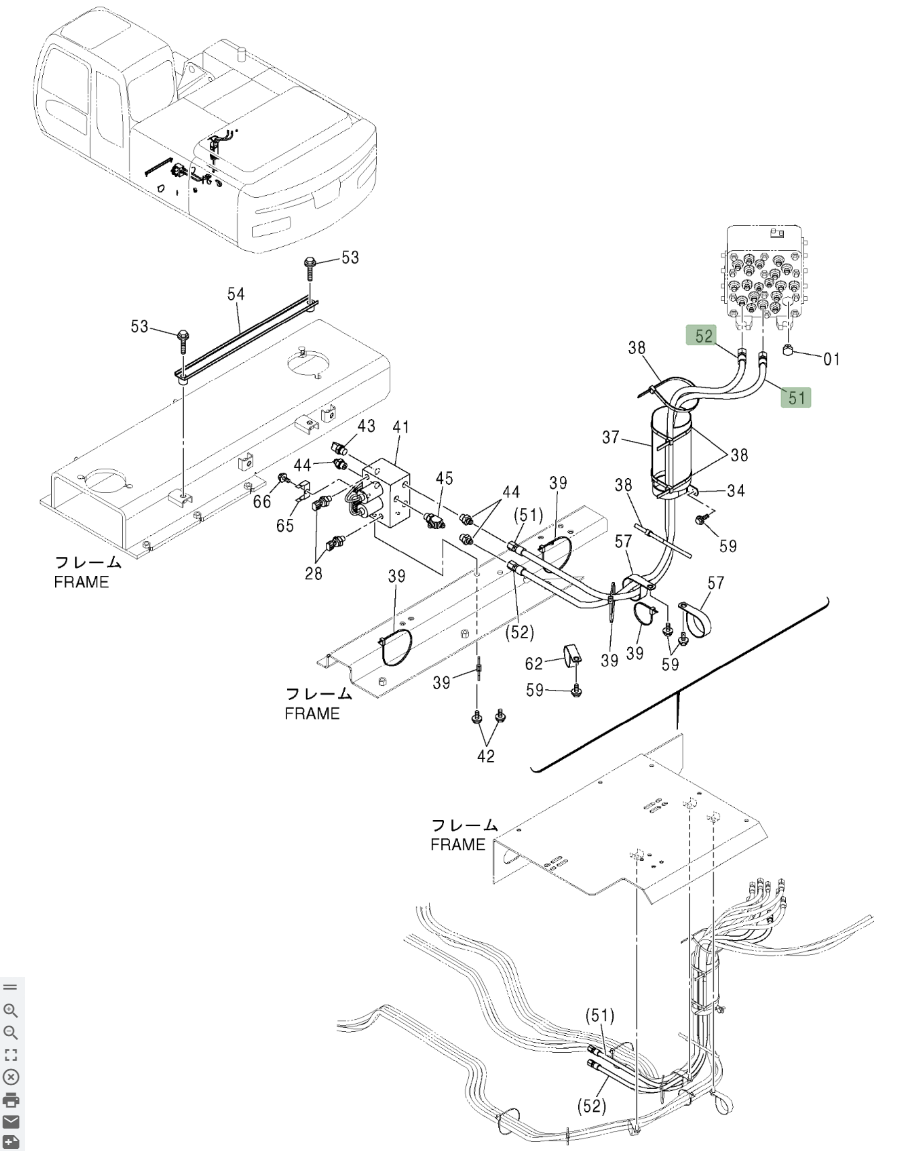

Installation diagram — Pipe No. 51
Locate Pipe No. 51 in the diagram, then confirm part number 4467598 before removing the hose.
Repair specifications
- Part number
- 4467598
- Diagram pipe number
- 51
- Installation route
- 中转接头~电磁阀(踏板)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 1,300 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
