Individual hose record
9322956 Hose Repair Specifications
Excavator · Hitachi · ZX190W-5N · Attachments – Breaker
Finished length1,700 mm
Locate this hose

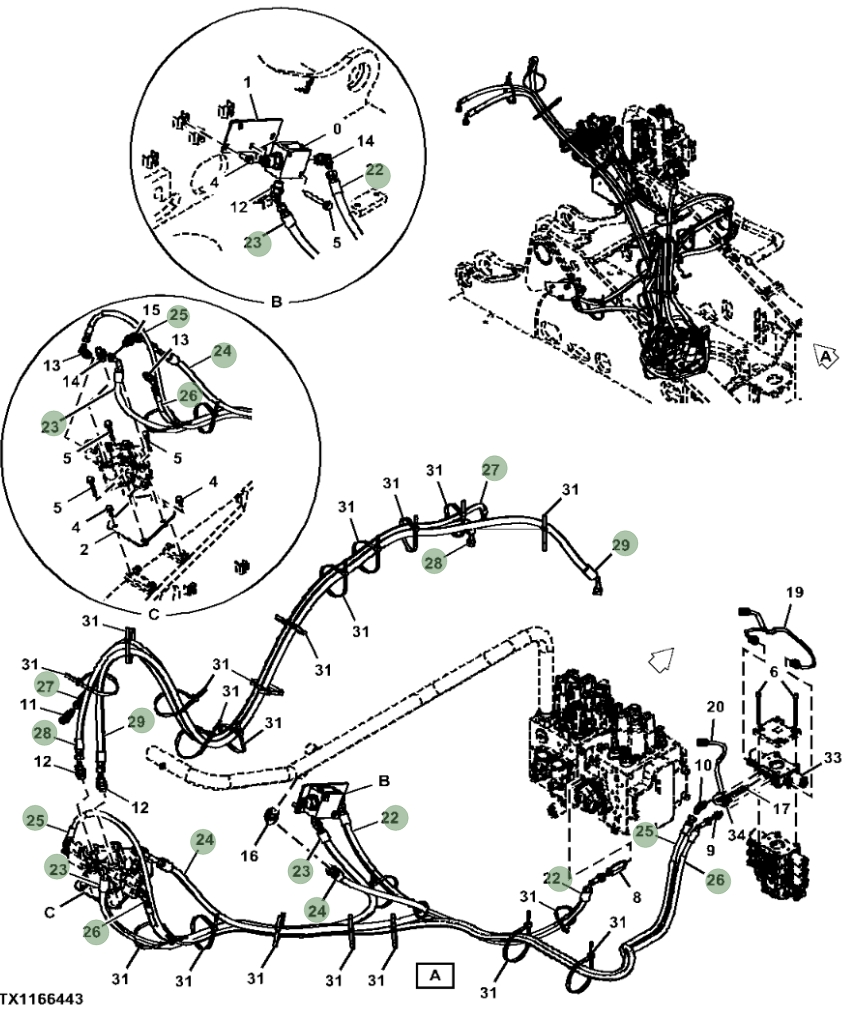

Installation diagram — Pipe No. 24
Locate Pipe No. 24 in the diagram, then confirm part number 9322956 before removing the hose.
Repair specifications
- Part number
- 9322956
- Diagram pipe number
- 24
- Installation route
- 控制阀(破碎器)~回油铁管(分配阀)
- Hose specification
- DN12;1SN-8;7Mpa
- Finished length
- 1,700 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
