Individual hose record
4662954 Hose Repair Specifications
Excavator · Hitachi · ZX190W-5N · Attachments – Breaker
Finished length1,200 mm
Locate this hose

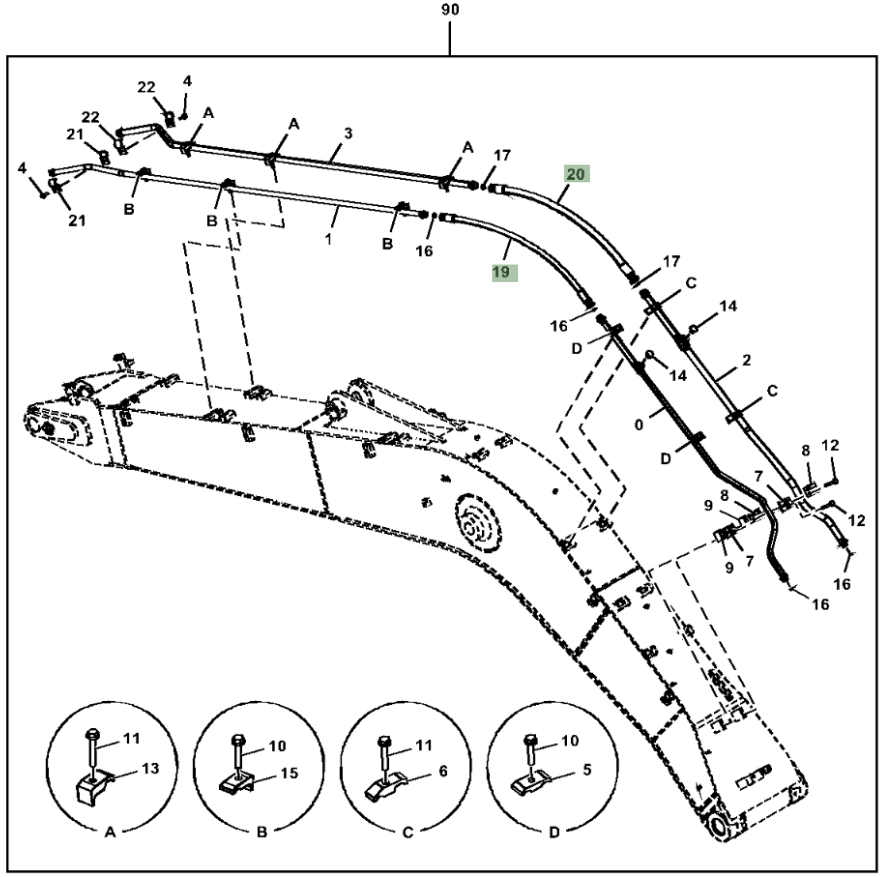

Installation diagram — Pipe No. 20
Locate Pipe No. 20 in the diagram, then confirm part number 4662954 before removing the hose.
Repair specifications
- Part number
- 4662954
- Diagram pipe number
- 20
- Installation route
- 大臂(前段)~大臂(后段)
- Hose specification
- DN25;4SP-16;34.5MPa
- Finished length
- 1,200 mm
- Working pressure
- 34.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
